  • TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, PoE Auto Recovery, VLAN, QoS, IGMP Snooping, Loop Prevention, Port Isolatio

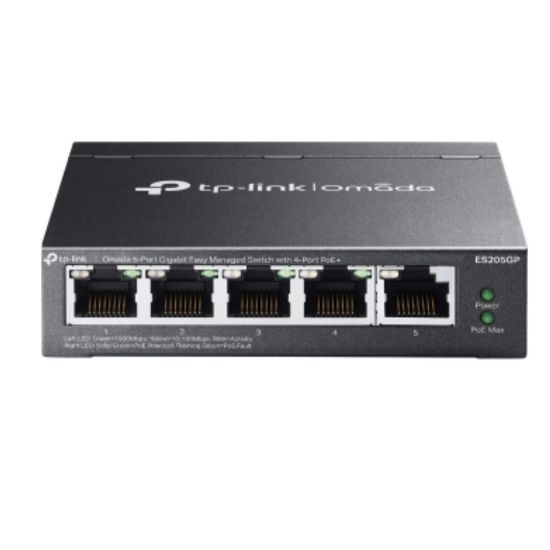

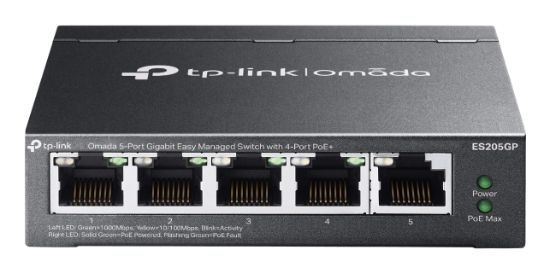

Picture of TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, PoE Auto Recovery, VLAN, QoS, IGMP Snooping, Loop Prevention, Port Isolatio

TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, PoE Auto Recovery, VLAN, QoS, IGMP Snooping, Loop Prevention, Port Isolatio

Manufacturer: TP-LINK
Availability: 24 in stock
TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, PoE Auto Recovery, VLAN, QoS, IGMP Snooping, Loop Prevention, Port Isolatio
$101.27
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)


Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Products specifications
Attribute nameAttribute value
Switch typeManaged
Quality of Service (QoS) supportYes
Cloud-managedYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
10G supportNo
Port mirroringYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Transmission distance (max)0.25 km
Switching capacity10 Gbit/s
Forwarding rate7.4 Mpps
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15
Packet buffer memory4 MB
DHCP featuresDHCP client
IGMP snoopingYes
Loop protectionYes
Product colourBlack
Reset buttonYes
LED indicatorsYes
Wall mountableYes
FanlessYes
Power sourceAC/DC
Power supply includedYes
DC input voltage53.5 V
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget65 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Width100 mm
Depth98 mm
Height25 mm
User guideYes
Package typeBox
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
