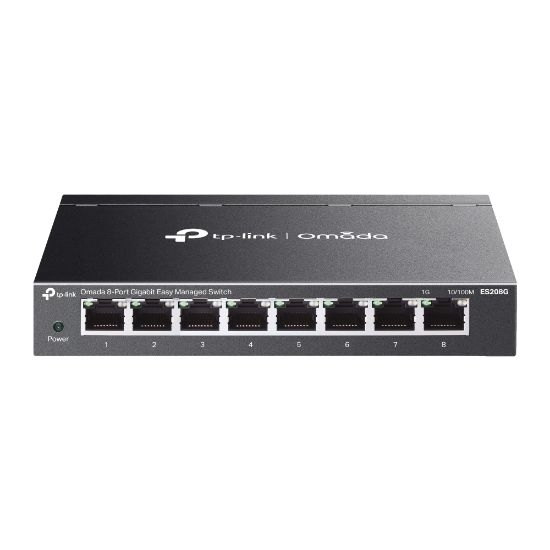

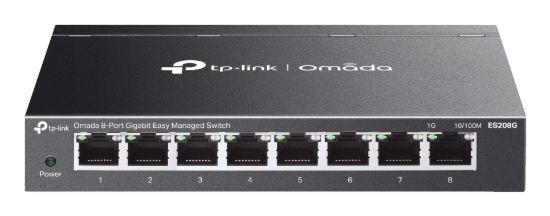

TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, Q

TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, Q
Manufacturer: TP-LINK
Availability: 26 in stock
Old price: $70.07
$73.97
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Products specifications

Attribute nameAttribute value
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
Unified static configurationYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Networking standardsIEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
10G supportNo
Zero Touch Provisioning (ZTP)Yes
Port mirroringYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Fast leaveYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs32
Switching capacity16 Gbit/s
Forwarding rate11.9 Mpps
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory4 MB
DHCP featuresDHCP client
IGMP snoopingYes
Loop protectionYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Rack mountingNo
StackableNo
Product colourBlack
LED indicatorsYes
Wall mountableYes
Flash memory64 MB
Firmware upgradeableYes
FanlessYes
Mean time between failures (MTBF)1141726 h
Power sourceDC
Power supply includedYes
DC input voltage5 V
Input current0.6 A
Power consumption (max)2.7 W
Surge protectionYes
Surge protection voltage6 kV
Power over Ethernet (PoE)No
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation9.09 BTU/h
Width158 mm
Depth100.7 mm
Height25.4 mm
User guideYes
AC adapter includedYes
Package typeBox
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
