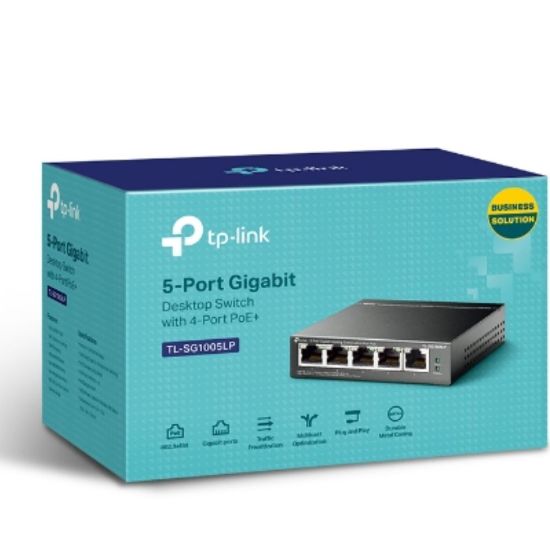

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port

Manufacturer: TP-LINK
Availability: 15 in stock
TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port
$88.27
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Products specifications
Attribute nameAttribute value
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity5
Networking standardsIEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Switching capacity10 Gbit/s
Forwarding rate7.44 Mpps
MAC address table2000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames16000
IGMP snoopingYes
Rack mountingNo
StackableNo
Product colourBlack
LED indicatorsYes
Wall mountableYes
Maximum cable length100 m
FanlessYes
Power sourceDC/PoE
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
DC input voltage53.5 V
Input current0.81 A
Power consumption (max)47.5 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Total Power over Ethernet (PoE) budget40 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation161.98 BTU/h
Width99.8 mm
Depth98 mm
Height25 mm
User guideYes
Package typeBox
Package width131 mm
Package depth196 mm
Package height121 mm
Package weight730 g
Sustainability complianceYes
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
CertificationFCC, CE, RoHS
Harmonized System (HS) code85176990
