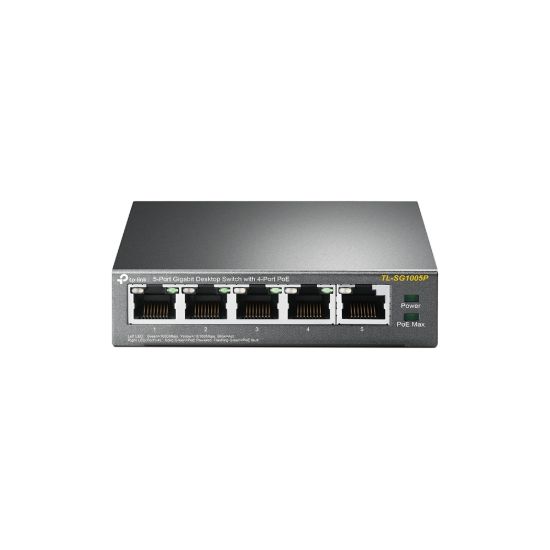

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE, 5 Gigabit RJ45 ports including 4 PoE ports, 56W PoE Power supply, steel case

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE, 5 Gigabit RJ45 ports including 4 PoE ports, 56W PoE Power supply, steel case
Manufacturer: TP-LINK
Availability: 31 in stock
Old price: $89.59
$101.27
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Products specifications

Attribute nameAttribute value
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Flow control supportYes
Auto MDI/MDI-XYes
MAC address auto-aging supportedYes
VLAN supportYes
Switching capacity10 Gbit/s
MAC address table2000 entries
Store-and-forwardYes
IGMP snoopingYes
Rack mountingNo
Product colourBlack
LED indicatorsYes
Power supply includedYes
AC input voltage100 - 220 V
AC input frequency50 Hz
Power consumption (max)63.31 W, 64.44 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Total Power over Ethernet (PoE) budget56 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Width99.8 mm
Depth98 mm
Height25 mm
Cables includedAC
Quick start guideYes
ManualYes
Package typeBox
CertificationFCC, CE, RoHS
Harmonized System (HS) code85176990
Gigabit Ethernet (copper) ports quantity5
Auto-negotiationYes
MAC address auto-learning supportedYes
Forwarding rate7.44 Mpps
StackableNo
Maximum cable length100 m
FanlessYes
Power sourceDC/PoE
DC input voltage48 V
Input current1.25 A
Heat dissipation219.87 BTU/h
User guideYes
AC adapter includedYes
Package width131 mm
Package depth196 mm
Package height121 mm
Package weight761 g
Sustainability complianceYes
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
