  • TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ , 6× 10/100/1000 Mbps RJ45 ports

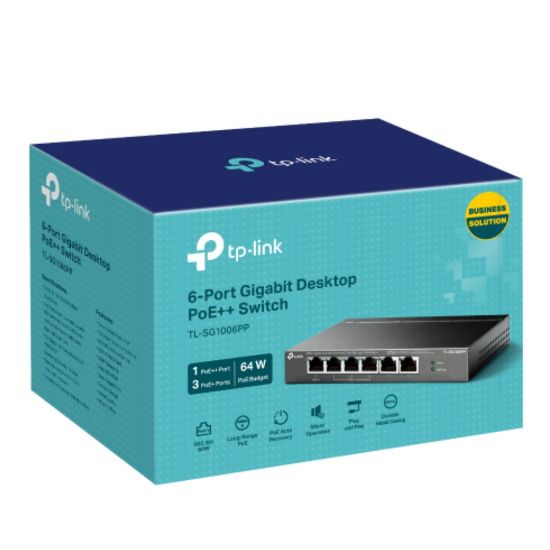

Picture of TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ , 6× 10/100/1000 Mbps RJ45 ports

TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ , 6× 10/100/1000 Mbps RJ45 ports

Manufacturer: TP-LINK
Availability: 20 in stock
TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ , 6× 10/100/1000 Mbps RJ45 ports
Old price: $133.29
$133.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
Products specifications
Attribute nameAttribute value
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Basic switching RJ-45 Ethernet ports quantity6
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Flow control supportYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Switching capacity12 Gbit/s
Forwarding rate8.928 Mpps
MAC address table4000 entries
Store-and-forwardYes
IGMP snoopingYes
Rack mountingYes
StackableYes
Product colourGrey
LED indicatorsYes
FanlessYes
Power sourceDC/PoE
Power supply includedYes
DC input voltage53.5 V
Input current1.31 A
Power consumption (typical)4.75 W
Power consumption (max)71.46 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Total Power over Ethernet (PoE) budget64 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation16.2 BTU/h
Width158 mm
Depth101 mm
Height25 mm
Quick start guideYes
Package typeBox
CertificationFCC, CE, RoHS
