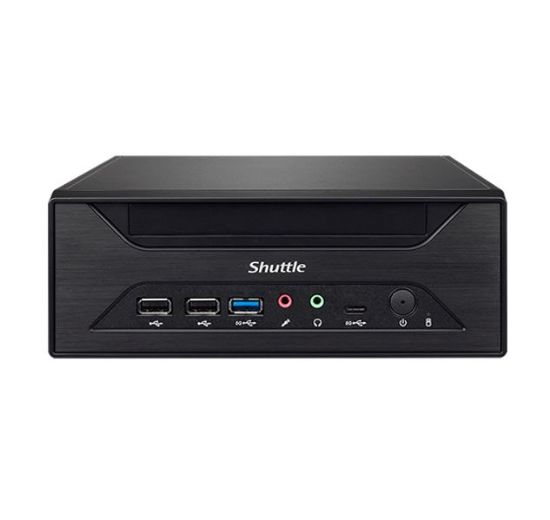

Shuttle XH610 XPC Intel 14th/13th/12th Gen LGA1700 socket, 3L, H610, 2x LAN, 2x COM, HDMI, DP, VGA, 3x 2.5' HDD/SSD, 120W

Manufacturer: Shuttle
Availability: 8 in stock
Shuttle XH610 XPC Intel 14th/13th/12th Gen LGA1700 socket, 3L, H610, 2x LAN, 2x COM, HDMI, DP, VGA, 3x 2.5' HDD/SSD, 120W
$600.37
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business
Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
Products specifications
Attribute nameAttribute value
Built-in processorNo
Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Supported memory clock speeds2133,2400,2666,2933,3200 MHz
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Memory voltage1.2 V
ECCNo
Non-ECCYes
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
Storage drive interfaceM.2, PCI Express, Serial ATA III
NVMeYes
On-board graphics cardYes
Graphics card familyIntel
Built-in speaker(s)No
Ethernet LANYes
Wi-FiNo
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
DisplayPort version1.4a
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
COM ports quantity2
DC-in jackYes
Number of M.2 (M) slots1
Chassis type3.5L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone
Motherboard chipsetIntel H610
Processor socketLGA 1700
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Compliance certificatesRoHS
Harmonized System (HS) code84733080
Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo
Sustainability certificatesENERGY STAR, ErP
Power supply typeExternal AC adapter
Power supply120 W
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
AC adapter output voltage19 V
AC adapter output current6.32 A
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 90%
Width200 mm
Depth238 mm
Height72 mm
Weight2.2 kg
Package weight3.5 kg
Quick start guideYes
Drivers includedYes
Country of originChina
