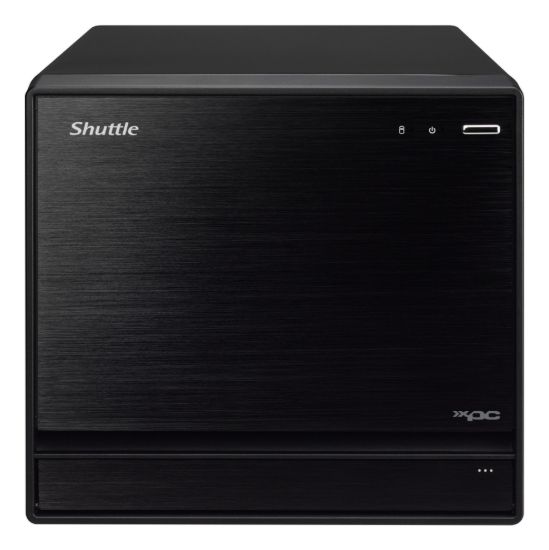

Shuttle SB860R8 XPC Cube 13L Barebone-Support Intel Arrow lake -Core S, 4x DDR4, 2x LAN, PCIEx 16, PCIEx 4, M.2 2280, 4x 3.5' HDD bay, 500W, HDMI

Shuttle SB860R8 XPC Cube 13L Barebone-Support Intel Arrow lake -Core S, 4x DDR4, 2x LAN, PCIEx 16, PCIEx 4, M.2 2280, 4x 3.5' HDD bay, 500W, HDMI
Manufacturer: Shuttle
Availability: 16 in stock
Old price: $1,732.50
$1,222.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
This well-cooled 14-litre barebone PC in cube format houses the performance of Intel's Core Ultra 200 series processors (Socket LGA1851 "Arrow Lake-S") with Integrated Neural Processing Unit (NPU) for demanding AI workloads. It accommodates four large 3.5" hard disks, four RAM moduls, two M.2 SSD cards and a dual-slot graphics card. There are also a wide range of connection options: four UHD-compatible graphics outputs, ten USB ports, two network connections, and five audio ports. Such impressive performance and range of features in an aluminum chassis with a volume of only 14 liters makes SB860R8 the ideal platform for demanding mini-server and workstation PCs with top reliability even under heavy load.

Products specifications

Attribute nameAttribute value
Built-in processorNo
Internal memory installedNo
Memory slots typeDIMM
Number of memory slots4
Maximum internal memory192 GB
Supported memory clock speeds5600 MHz
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Memory voltage1.1 V
ECCNo
Non-ECCYes
Storage drives installedNo
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
M.2 SSD size2280 (22 x 80 mm)
Storage drive interfaceSerial ATA III, PCI Express
NVMeYes
On-board graphics cardYes
Motherboard chipsetIntel B860
Processor socketLGA 1851 (Socket V1)
Number of processors supported1
BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio chipRealTek ALC888
Built-in speaker(s)No
Ethernet LANYes
Wi-FiNo
LAN controllerIntel I226-LM
USB 2.0 ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity2
HDMI version2.0b/2.1
DisplayPorts quantity2
DisplayPort version1.4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Chassis typeCube
Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsHDD, Power
Housing materialAluminium
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone
Compliance certificatesBSMI, CB, CE, Federal Communications Commission (FCC), RoHS
Windows operating systems supportedWindows 11
Linux operating systems supportedYes
Sustainability certificatesErP, ENERGY STAR
Power supply typeInternal power supply unit
Power supply500 W
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Width215 mm
Depth332 mm
Height190 mm
Weight3.9 kg
Package weight5 kg
Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
