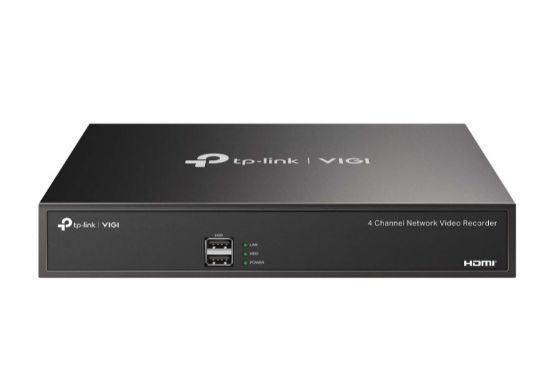

Picture of TP-Link VIGI NVR1004H VIGI 4 Channel Network Video Recorder (HDD Not Included)

TP-Link VIGI NVR1004H VIGI 4 Channel Network Video Recorder (HDD Not Included)

Manufacturer: TP-LINK

Availability: 14 in stock

Old price: $125.97

Price: $121.78

Qty:

Security Never Shuts Down

VIGI NVR1004H 4 Channel Network Video Recorder

Auto Initialize for Quick Configuration

Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.

Products specifications

Attribute name	Attribute value
Video input channels	4 channels
Video recording modes	720p, 1080p, 2160p
Maximum resolution	3840 x 2160 pixels
Supported resolutions	3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Video motion detection	Yes
Audio formats supported	G.711u, G.726
Video formats supported	H.264, H.264+, H.265, H.265+
Backup function	Yes
Maximum frame rate	30 fps
Input bandwidth	80 Mbit/s
Output bandwidth	60 Mbit/s
Recording modes	Manual, Schedule
Wi-Fi	No
HDD capacity	0 GB
Maximum storage capacity	10 TB
HDD interface	SATA
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE) ports quantity	1
HDMI output	Yes
HDMI ports quantity	1
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	2
Audio RCA inputs	1
Audio RCA outputs	1
DC-in jack	Yes
Supported network protocols	UPnP (Plug and Play), NTP (Network Timing)
LED indicators	Yes
Reset button	Yes
Product colour	Black
Power consumption (typical)	4.25 W
Mobile operating systems supported	Android, iOS
Browser supported	Chrome (57+), Firefox (52+), Edge (91+)
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Width	246.2 mm
Depth	148.2 mm
Height	45 mm
Weight	590 g
Package weight	950 g
AC adapter included	Yes
Quick installation guide	Yes
