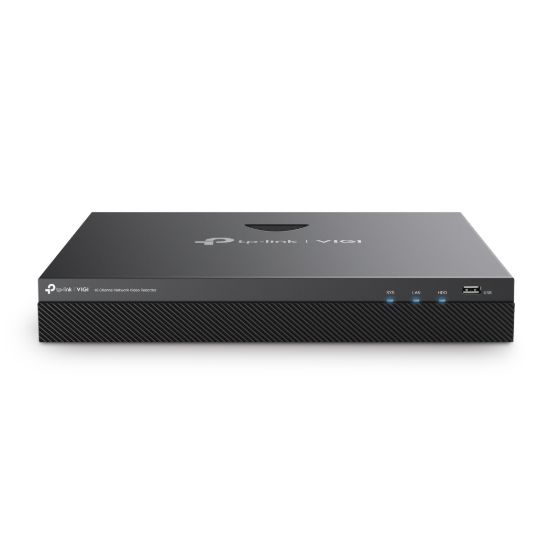

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder, 4K Out, 16MP Decode, H.265+, ONVIF, 2-Way Audio, Remote Monitoring (HDD Not Included)

Manufacturer: TP-LINK
Availability: 29 in stock
TP-Link VIGI NVR2016H 16 Channel Network Video Recorder, 4K Out, 16MP Decode, H.265+, ONVIF, 2-Way Audio, Remote Monitoring (HDD Not Included)
Old price: $278.19
$344.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Security Never Shuts Down

Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†

Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △

Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

Security for Every Hour and Every Day
27/4 Continuous Recording
Automatically and continuously stores up to 20 TB of footage from connected cameras to secure your data for quick and convenient access.

Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.

Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.

Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.

Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Products specifications
Attribute nameAttribute value
Video input channels16 channels
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutionsHDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Video motion detectionYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Video formats supportedH.264, H.264+, H.265, H.265+
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Playback controlsYes
Maximum frame rate30 fps
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s
Recording modesManual, Schedule
Wi-FiNo
HDD capacity0 GB
Number of HDDs supported2
Maximum storage capacity10 TB
HDD interfaceSATA
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
HDMI ports quantity1
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
eSATA ports quantity1
Internal SATA ports quantity2
eSATAYes
Line-inYes
Audio output1
DC-in jackYes
Supported network protocolsUPnP (Plug and Play), NTP (Network Timing)
Reset buttonYes
Product colourBlack
CertificationCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Power consumption (max)24.16 W
Output current3.3 A
Output voltage12 V
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%
Width330 mm
Depth285 mm
Height45 mm
Weight1.9 kg
Package weight3.2 kg
