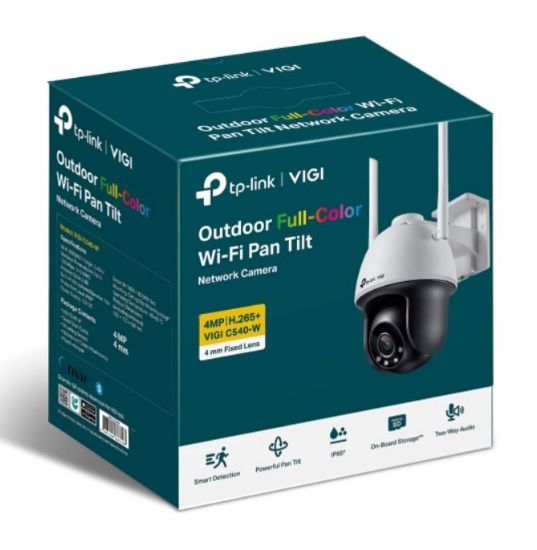

TP-Link VIGI 4MP C540-W(4mm) Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera, 4mm Lens, Smart Detection,3YW

TP-Link VIGI 4MP C540-W(4mm) Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera, 4mm Lens, Smart Detection,3YW
Manufacturer: TP-LINK
Availability: 18 in stock
Old price: $144.79
$167.78
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).

Products specifications

Attribute nameAttribute value
TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
CertificationRCM, BSMI, VCCI, NCC, JRF, KC
Form factorTurret
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialPlastic
International Protection (IP) codeIP66
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal79°
Lens viewing angle, vertical43°
Lens viewing angle, diagonal93°
Tilt angle range0 - 120°
Tilt speed44 °/sec
Pan range0 - 350°
Pan speed44 °/sec
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Sensor typeCMOS
Zoom capabilityYes
Number of lenses1
Detect distance80 m
Observe distance33 m
Recognize distance16 m
Lens diameter4 mm
Identify distance8 m
Night visionYes
Night vision distance30 m
LED typeIR
Infra-red wavelength850 nm
Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image quality adjustmentBrightness, Contrast, Mirror, Saturation, Sharpness
Privacy maskingYes
Bit rate256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)Yes
Built-in speaker(s)Yes
Built-in microphoneYes
Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothNo
Live viewYes
Number of simultaneous live view channels3 channels
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Ethernet LAN (RJ-45) ports1
Password protectionYes
IP address filteringYes
Security algorithmsWPA, WPA2-PSK
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresHuman detection
MirrorYes
Digest authenticationYes
Reset buttonYes
Behavior analysisIntrusion detection, Line crossing detection
Power source typeDC
DC output voltage12
Operating temperature (T-T)-30 - 60 °C
Width120 mm
Depth172 mm
Height198 mm
Basic eventMotion Detection, Camera Tampering Detection, Exception
Package width163 mm
Package depth243 mm
Package height243 mm
Package weight1.21 kg
Compliance certificatesCE, RoHS
Number of cameras1
Mounting kitYes
