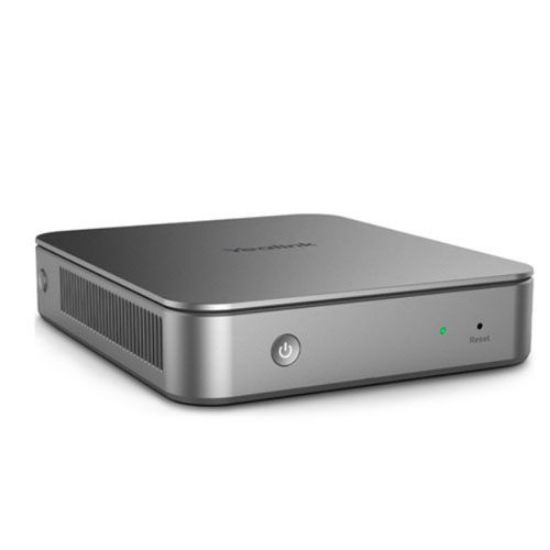

Picture of Yealink Mcore-ZR, USB3.0 Type-A port, MTouch Port, Zoom Rooms, HDMI Video Output. Yealink Camera Control Plugin

Yealink Mcore-ZR, USB3.0 Type-A port, MTouch Port, Zoom Rooms, HDMI Video Output. Yealink Camera Control Plugin

Yealink Mcore-ZR, USB3.0 Type-A port, MTouch Port, Zoom Rooms, HDMI Video Output. Yealink Camera Control Plugin
Manufacturer: Yealink
Availability: 29 in stock
$2,110.46
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
A mini-PC designed specifically for video conference room systems
Yealink MCore Pro is a Mini-PC specially designed for Yealink conference room systems. It uses the Intel Core 11th generation i5 processor with excellent performance, providing powerful data processing capabilities for conference room systems. MCore Pro has three built-in HDMI video output interfaces, which support the simultaneousdisplay of three screens to provide a diverse video conferencing experience. Use the TPM 2.0 with the Intel vPro Platform* to keep your data secure. The automatic wake-up screen feature supported by CEC allows you to enjoy the convenient experience by one touch. In addition, the built-in security slot of the MCore Pro can provide you with a simple and reliable deployment experience.

*vPro Platform is only supported when using Intel i5-1145G7E

Products specifications

Attribute nameAttribute value
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation11th gen Intel® Core™ i5
Processor modeli5-1145G7E
Processor cores4
Processor threads8
Processor boost frequency4.1 GHz
Processor cache8 MB
Processor cache typeSmart Cache
Internal memory8 GB
Internal memory typeDDR4-SDRAM
Memory layout (slots x size)2 x 4 GB
Total storage capacity128 GB
Storage mediaSSD
Optical drive typeNo
Number of storage drives installed1
Total SSDs capacity128 GB
Number of SSDs installed1
SSD capacity128 GB
Discrete graphics cardNo
On-board graphics cardYes
Discrete graphics card modelNot available
On-board GPU manufacturerIntel
On-board graphics card familyIntel Iris Xe Graphics
On-board graphics card modelIntel Iris Xe Graphics
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity3
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Chassis typeMini PC
Cable lock slotYes
Product colourBlack
BIOS typeUEFI
Trusted Platform Module (TPM)Yes
Product typeMini PC
Operating system installedWindows 11 IoT Enterprise
Power supply input voltage19 V
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 95%
Width168 mm
Depth197 mm
Height39 mm
Weight690 g
Package width203 mm
Package depth265 mm
Package height148 mm
Package weight1.43 kg
Cables includedHDMI
Display includedNo
Power supply input voltage19 V
