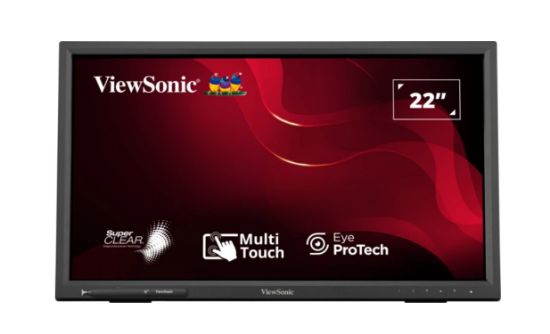

Picture of ViewSonic TD2223-2 22' IR Touch Monitor, Intuitive 10-point touchscreen, Finger, stylus, and glove touch compatible, Magnetic pen placeholder
Picture of ViewSonic TD2223-2 22' IR Touch Monitor, Intuitive 10-point touchscreen, Finger, stylus, and glove touch compatible, Magnetic pen placeholder
Picture of ViewSonic TD2223-2 22' IR Touch Monitor, Intuitive 10-point touchscreen, Finger, stylus, and glove touch compatible, Magnetic pen placeholder
Picture of ViewSonic TD2223-2 22' IR Touch Monitor, Intuitive 10-point touchscreen, Finger, stylus, and glove touch compatible, Magnetic pen placeholder
Picture of ViewSonic TD2223-2 22' IR Touch Monitor, Intuitive 10-point touchscreen, Finger, stylus, and glove touch compatible, Magnetic pen placeholder

ViewSonic TD2223-2 22' IR Touch Monitor, Intuitive 10-point touchscreen, Finger, stylus, and glove touch compatible, Magnetic pen placeholder

ViewSonic TD2223-2 22' IR Touch Monitor, Intuitive 10-point touchscreen, Finger, stylus, and glove touch compatible, Magnetic pen placeholder
Manufacturer: ViewSonic Commercial
Availability: 6 in stock
$575.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.

Dimension & I/O Ports
Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

Products specifications

Attribute nameAttribute value
Display diagonal55.9 cm (22")
Display resolution1920 x 1080 pixels
HD typeFull HD
Native aspect ratio16:9
Display technologyLCD
Panel typeVA
LED backlightYes
TouchscreenYes
Touchscreen technologyInfrared
Touch technologyMulti-touch
Number of simultaneous touchpoints10
Display brightness (typical)250 cd/m²
Response time6.5 ms
Display surfaceGloss
Screen shapeFlat
Contrast ratio (typical)3000:1
Contrast ratio (dynamic)20000000:1
Maximum refresh rate75 Hz
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.7 million colours
Pixel pitch0.249 x 0.241 mm
Display diagonal (metric)55.9 cm
Colour depth8 bit
sRGB coverage (typical)104%
NTSC coverage (typical)72%
NVIDIA G-SYNCNo
AMD FreeSyncNo
Flicker-free technologyYes
Low Blue Light technologyYes
Number of speakers2
RMS rated power4 W
Built-in speaker(s)Yes
Built-in cameraNo
Market positioningOffice
Product colourBlack
Feet colourBlack
Glass thickness2 mm
Built-in USB hubYes
USB hub version2.0
Number of USB Type-B upstream ports quantity1
USB Type-A downstream ports quantity2
VGA (D-Sub) ports quantity1
DVI portYes
DVI-D ports quantity1
HDMIYes
HDMI ports quantity1
HDMI version1.4
Headphone outYes
Headphone outputs1
Headphone connectivity3.5 mm
AC (power) inYes
VESA mountingYes
Panel mounting interface100 x 100 mm
Wall mountableYes
Cable lock slotYes
Cable lock slot typeKensington
Height adjustmentNo
Tilt adjustmentYes
Tilt angle range20 - 40°
On Screen Display (OSD)Yes
Power consumption (typical)18.5 W
Power consumption (standby)0.5 W
Power consumption (max)21.8 W
AC input voltage100 - 240 V
Power supply typeInternal
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 90%
Width (with stand)519 mm
Depth (with stand)101 mm
Height (with stand)329 mm
Weight (with stand)4.2 kg
Width (without stand)519 mm
Depth (without stand)61 mm
Height (without stand)308 mm
Weight (without stand)3.7 kg
Package width580 mm
Package depth162 mm
Package height405 mm
Package weight5.7 kg
Stand includedYes
Cables includedAC, Audio, HDMI, USB Type-A to USB Type-B
Quick start guideYes
Weight4.2 kg
CertificationcTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
Products per master (outer) case1 pc(s)
Pallet gross width120 cm
Pallet gross length100 cm
Pallet gross height2.15 m
Harmonized System (HS) code8528521000
