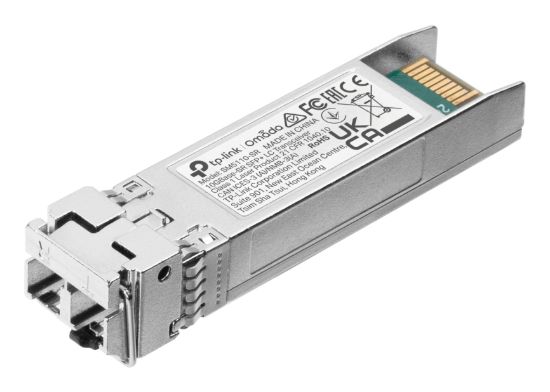

Picture of TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Digital Diagnostic Monitoring SFP+ MSA Compatible

TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Digital Diagnostic Monitoring SFP+ MSA Compatible

Manufacturer: TP-LINK

Availability: 24 in stock

Old price: $50.57

Price: $58.35

Qty:

The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Products specifications

Attribute name	Attribute value
SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC (UPC)
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Maximum transfer distance	300 m
Wavelength	850 nm
Digital Diagnostics Monitoring (DDM)	Yes
Product colour	Silver
Hot-swap	Yes
Input voltage	3.3 V
Certification	FCC, CE
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	61.3 mm
Depth	14.5 mm
Height	12.2 mm
Quantity per pack	1 pc(s)
Package width	220 mm
Package depth	270 mm
Package height	275 mm
Package weight	60 g
