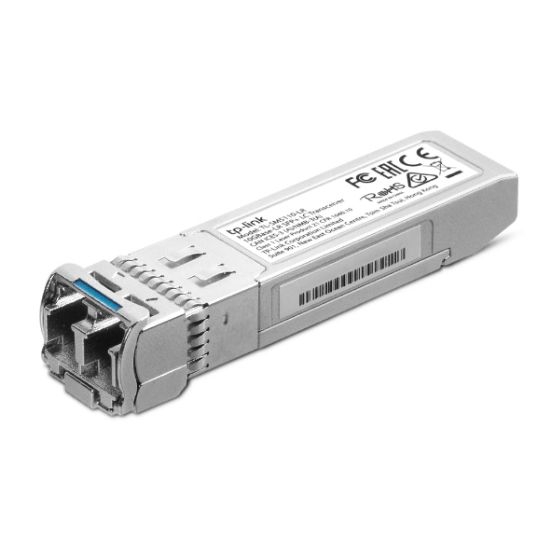

Picture of TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Hot-Pluggable, Supports Digital Diagnostic Monitoring, SFP+ MSA Compatible, 10KM

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Hot-Pluggable, Supports Digital Diagnostic Monitoring, SFP+ MSA Compatible, 10KM

Manufacturer: TP-LINK

Availability: 8 in stock

$73.97

Qty:

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Products specifications

Attribute name	Attribute value
SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	LR
Maximum transfer distance	10000 m
Wavelength	1310 nm
Networking standards	IEEE 802.3ae
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Yes
Hot-Plug support	Yes
Hot-swap	Yes
Brand compatibility	TP-Link
Compatible products	Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Input voltage	3.3 V
Certification	FCC, CE
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	56.7 mm
Depth	13.9 mm
Height	10.3 mm
Quantity per pack	1 pc(s)
Package width	81.5 mm
Package depth	122.5 mm
Package height	38.5 mm
Package weight	60 g
Harmonized System (HS) code	85369010
