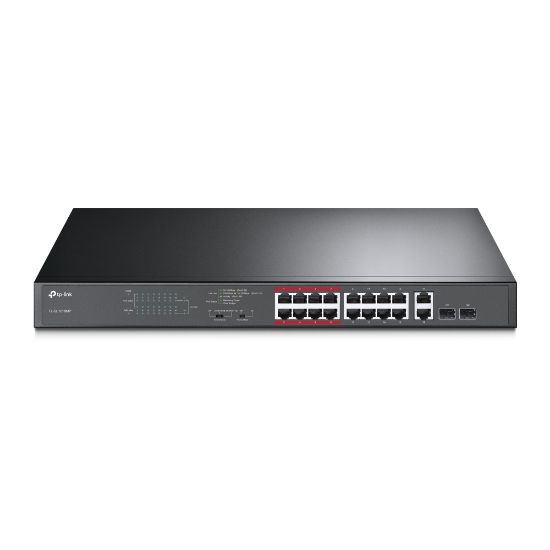

Picture of TP-Link TL-SL1218MP 16-Port 10/100Mbps PoE+ Switch, 16 10/100Mbps RJ45 Ports, 2 Gigabit RJ45 Ports, 2 Combo SFP Slots, 802.3at/af, 192W PoE Power, 1U

TP-Link TL-SL1218MP 16-Port 10/100Mbps PoE+ Switch, 16 10/100Mbps RJ45 Ports, 2 Gigabit RJ45 Ports, 2 Combo SFP Slots, 802.3at/af, 192W PoE Power, 1U

Manufacturer: TP-LINK

Availability: 6 in stock

$345.57

Qty:

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

Products specifications

Attribute name	Attribute value
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	16
Gigabit Ethernet (copper) ports quantity	2
Combo SFP ports quantity	2
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Auto MDI/MDI-X	Yes
Switching capacity	7.2 Gbit/s
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB
MAC address filtering	Yes
Rack mounting	Yes
Stackable	No
Product colour	Black
LED indicators	LAN, PoE, Status
Number of fans	2 fan(s)
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	18.7 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	192 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	741.15 BTU/h
Width	440 mm
Depth	180 mm
Height	44 mm
Cables included	LAN (RJ-45)
Quick start guide	Yes
User guide	Yes
Manual	Yes
Harmonized System (HS) code	85176990

TP-Link TL-SL1218MP 16-Port 10/100Mbps PoE+ Switch, 16 10/100Mbps RJ45 Ports, 2 Gigabit RJ45 Ports, 2 Combo SFP Slots, 802.3at/af, 192W PoE Power, 1U
