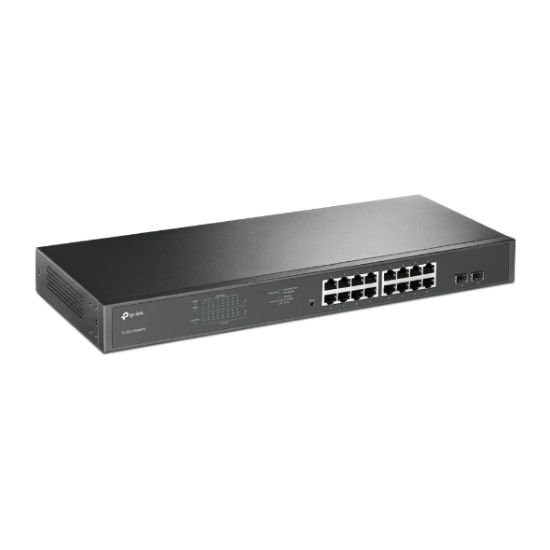

TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Easy Smart Switch, 16 Gigabit RJ45 Ports, 2 SFP Slots, 802.3at/af, 192W PoE Power, 1U 19-inch Rack-mountable

TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Easy Smart Switch, 16 Gigabit RJ45 Ports, 2 SFP Slots, 802.3at/af, 192W PoE Power, 1U 19-inch Rack-mountable
Manufacturer: TP-LINK
Availability: 4 in stock
$344.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Professional High Power 18-Port Gigabit Easy Smart Switch with 16-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Products specifications

Attribute nameAttribute value
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Basic switching RJ-45 Ethernet ports quantity18
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity18
Combo SFP ports quantity2
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN
Number of VLANs32
Fiber ethernet cabling technology1000BASE-X
Switching capacity36 Gbit/s
Forwarding rate26.78 Mpps
MAC address table8000 entries
Store-and-forwardYes
Number of queues4
Jumbo frames supportYes
Jumbo frames10000
Packet buffer memory4.1 MB
IGMP snoopingYes
Security algorithmsSNMP, SNMPv2, SNMPv3
Loop protectionYes
Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Number of fans2 fan(s)
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
Power consumption (max)296.3 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Power over Ethernet plus (PoE+) ports quantity16
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation741.15 BTU/h
Width440 mm
Depth180 mm
Height44 mm
Cables includedAC
User guideYes
Rack mount kitYes
CertificationCE, FCC, RoHS
Harmonized System (HS) code85176990
