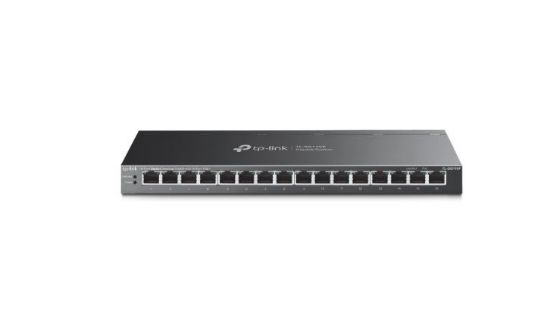

TP-Link TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+, Up to 250 m, Isolation Mode, PoE Auto Recovery, Plug and Play

TP-Link TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+, Up to 250 m, Isolation Mode, PoE Auto Recovery, Plug and Play
Manufacturer: TP-LINK
Availability: 24 in stock
Old price: $211.49
$211.48
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
TP-Link TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+ • 16× 10/100/1000 Mbps RJ45 ports • With 16 PoE+ ports, transfers data and power on one single cable • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 120 W for all PoE ports* • Up to 250 m data and power transmission range under Extend Mode** • Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications • Isolation Mode allows one-click client traffic separation for higher security and performance • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery • Plug and play with no configuration required Warranty Period: 5-Year

Products specifications

Attribute nameAttribute value
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity16
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Cable length detectionYes
VLAN supportYes
Virtual LAN featuresProtocol-based VLAN, Tagged VLAN
Number of VLANs32
Switching capacity32 Gbit/s
Forwarding rate23.81 Mpps
MAC address table8000 entries
Store-and-forwardYes
Number of queues4
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1 MB
IGMP snoopingYes
Loop protectionYes
StackableYes
Product colourBlack
Housing materialMetal
LED indicatorsYes
Wall mountableYes
Power supply includedYes
AC input voltage220 V
AC input frequency50 Hz
DC input voltage9 V
Input current0.6 A
Power consumption (typical)11.72 W
Power consumption (max)144.28 W
Power over Ethernet (PoE)Yes
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation490.55 BTU/h
Width286 mm
Depth111.7 mm
Height25.4 mm
Quick start guideYes
Package width227 mm
Package depth434 mm
Package height70 mm
Package weight2 kg
