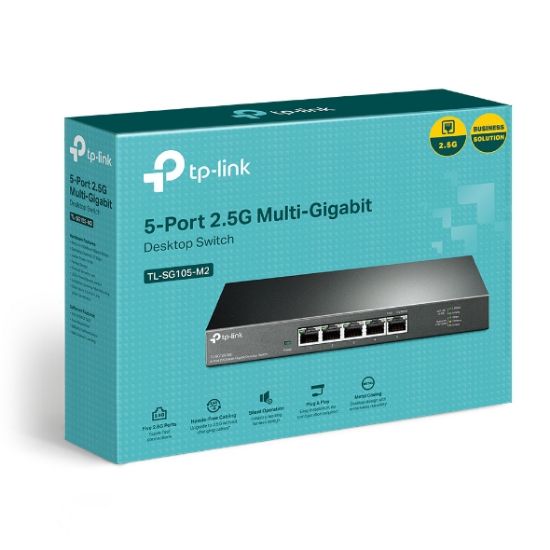

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch, Up To 25G Switching Capacity, Connects 2.5G NAS/Server, 2.5G WiFi 6 AP, 4K Video, Wall-Mountable, 5YW

Manufacturer: TP-LINK
Availability: 32 in stock
TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch, Up To 25G Switching Capacity, Connects 2.5G NAS/Server, 2.5G WiFi 6 AP, 4K Video, Wall-Mountable, 5YW
Old price: $89.59
$101.27
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Upgrade to a Super-Fast, Futuristic Network
5/8-Port 2.5G Desktop Switch
TL-SG105-M2/ TL-SG108-M2

Unlock the Highest Performance of
2.5G Multi-Gig Bandwidth and Devices

As the flagship 2.5G products, the 5/8-Port desktop switches with 5/8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25/40 Gbps of switching capacity. Auto-negotiation 3-speed (100Mb/1G/2.5G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, 2.5G WiFi 6 AP, 4K video, desktop, and more.

Powerful Performance for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!

Ideal for Small and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.

2.5G Super-Fast Speeds
without Changing Cables

Flawlessly integrated into existing gigabit Ethernet network infrastructures, 2.5× faster speeds* with regular Cat5e Ethernet cables, without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.

Silent Operation with
Industry-Leading Fanless Design

The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.

Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Products specifications
Attribute nameAttribute value
Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity5
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
Switching capacity25 Gbit/s
Forwarding rate18.6 Mpps
MAC address table16000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames10000
Packet buffer memory1.5 MB
Rack mountingNo
Product colourBlack
LED indicatorsYes
Power sourceDC
Power supply includedYes
Input current1 A
Input voltage12 V
Power consumption (max)12.11 W
Power over Ethernet (PoE)No
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation41.32 BTU/h
Width209 mm
Depth126 mm
Height26 mm
Cables includedLAN (RJ-45)
Quick start guideYes
Package width240 mm
Package depth315 mm
Package height70 mm
Package weight870 g
CertificationCE, FCC ,RoHS
Harmonized System (HS) code85176990
