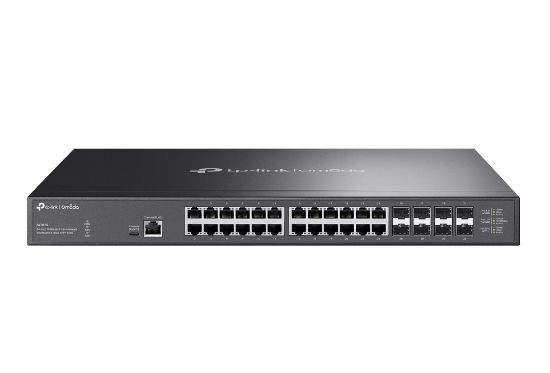

Picture of TP-Link SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots (SX3832)；24× 1/2.5/5/10 Gbps RJ45 ports；8× 1/10 Gbps SFP+ slots; 640

TP-Link SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots (SX3832)；24× 1/2.5/5/10 Gbps RJ45 ports；8× 1/10 Gbps SFP+ slots; 640

Manufacturer: TP-LINK

Availability: 4 in stock

Old price: $3,170.57

Price: $2,599.70

Qty:

Omada 24-Port 10GBASE-T
L2+ Managed Switch with 8
10GE SFP+ Slots

- 24× 1/2.5/5/10 Gbps RJ45 Ports
- 8× 10 Gbps SFP+ Slots
- Centralized Management
- Omada App
- Zero-Touch Provisioning
- Ethernet Ring Protection Switching
- Static Routing
- Traffic Separation

Products specifications

Attribute name	Attribute value
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	8
USB Type-C ports quantity	1
Console port	RJ-45/USB Type-C
Networking standards	IEEE 802.3az
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	10,100 Mbit/s
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Switching capacity	640 Gbit/s
Forwarding rate	240 Mpps
MAC address table	32000 entries
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	24 MB
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes
Loop protection	Yes
Authentication	Auto VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, RADIUS, TACACS+
Multicast support	Yes
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	106.5 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	363.23 BTU/h
Width	440 mm
Depth	220 mm
Height	44 mm
Cables included	AC, LAN (RJ-45)
Quick start guide	Yes
Rack mount kit	Yes
