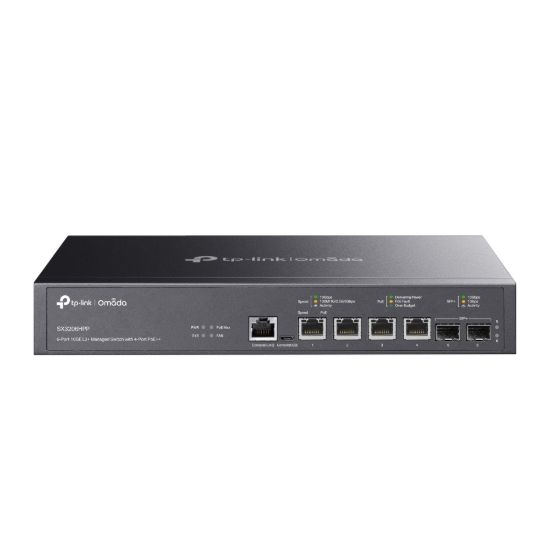

TP-Link SX3206HPP Omada JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++, 4× 10G PoE++ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port

Manufacturer: TP-LINK
Availability: 8 in stock
TP-Link SX3206HPP Omada JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++, 4× 10G PoE++ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port
Old price: $1,070.19
$1,120.70
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Products specifications
Attribute nameAttribute value
Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes
MIB supportYes
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
SFP+ module slots quantity2
Console portRJ-45/Micro-USB
Power connectorAC-in jack
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G supportYes
Port mirroringYes
IP routingYes
Routing entries512
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs4000
Switching capacity120 Gbit/s
Forwarding rate89.28 Mpps
MAC address table32000 entries
Static routeYes
Number of static routes48
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory16 MB
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithmsHTTPS, SSL/TLS
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationGuest VLAN
Authentication typeAAA, RADIUS, TACACS+
Multicast supportYes
Multicast Listener Discovery (MLD) snoopingMLD v1/v2
Management protocolsSNMP v1/v2c/v3
Rack mountingYes
Product colourBlack
LED indicatorsYes
Number of fans2 fan(s)
Minimum system requirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)244.9 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port60 W
Total Power over Ethernet (PoE) budget200 W
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation835.67 BTU/h
Width294 mm
Depth180 mm
Height44 mm
Cables includedAC
Quick start guideYes
Rack mount kitYes
CertificationCE, FCC, RoHS
