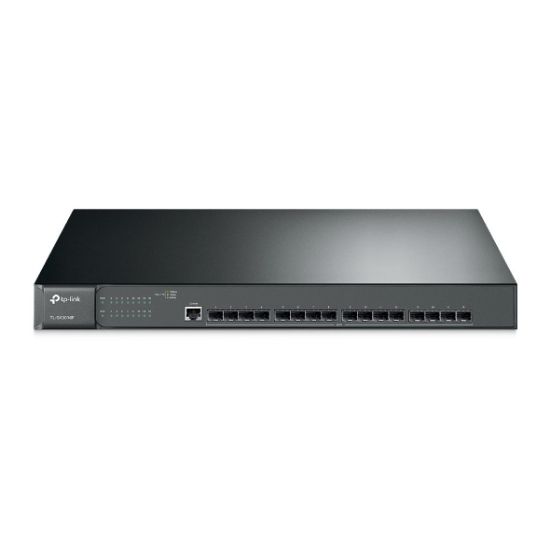

TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch, Centralised Cloud, Omada SDN, Remote Management, QoS, IGMP Snooping, Fanless

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch • 16× Full 10 Gbps SFP+ Slots - Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity • Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management • Abundant L2 and L2+ Features - Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more • Robust Security Strategies - Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more • Robust Hardware Design - Its fanless design ensures silent operation, while its durable metal casing and up to 45 ℃ operation temperature ensures reliability General Interface 8 10GE SFP+ Slots 16 10GE SFP+ Slots Console 1 RJ45 Console Port, 1 Micro-USB Console Port Flash 32 MB DRAM 256 MB Port Standard IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae: 10 Gigabit Ethernet over fiber Performance Switching Capacity 160 Gbps 320 Gbps Packet Forwarding Rate 119.04 Mpps 238.08 Mpps MAC Address Table 32K Packet Buffer 16 Mbit 24 Mbit Transmission Method Store and Forward Number of IP Interfaces 16 Number of Static Routers 48 (IPv4, IPv6) Jumbo Frame 9 KB Physical & Environment Dual Redundant Power Supply - 2 Fixed AC Power Supply Power Supply 100-240 V AC~50/60 Hz Max Power Consumption 15.46 W (220 V/50 Hz) 32.74 W (220 V/50 Hz) Max Heat Dissipation 52.75 BTU/hr (220 V/50 Hz) 111.71 BTU/hr (220 V/50 Hz) Standby Power Consumption 5.91 W (110 V/60 Hz) 13.33 W (110 V/60 Hz) Dimensions (W x D x H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) Fan Quantity Fanless 1 Installation Rack Mountable
