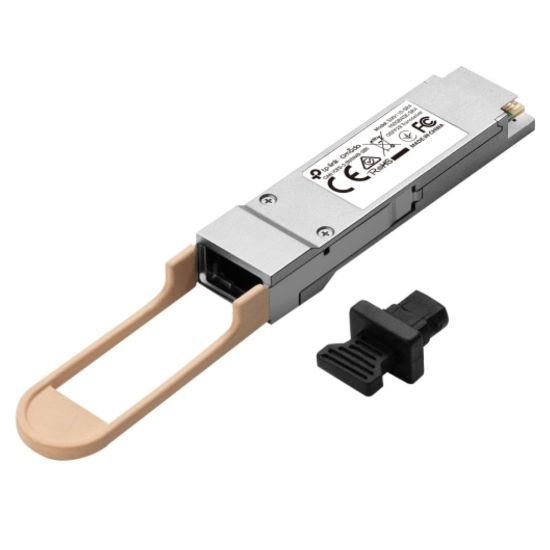

Picture of TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver, Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @

TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver, Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @

Manufacturer: TP-LINK

Availability: 24 in stock

Old price: $144.79

Price: $144.78

Qty:

The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).

Products specifications

Attribute name	Attribute value
SFP transceiver type	Fiber optic
Maximum data transfer rate	100000 Mbit/s
Interface type	QSFP28
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	MPO-12, MTP
Fiber cable diameters supported (core/cladding)	50/125 µm
SFP transceiver standard	SR4
Maximum transfer distance	150 m
Wavelength	850 nm
Tx power (min)	-8.4 dBmW
Tx power (max)	2.4 dBmW
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet
Networking standards	IEEE 802.3ba, IEEE 802.3bm
Fiber ethernet cabling technology	40GBASE, 100GBASE
Digital Diagnostics Monitoring (DDM)	Yes
Product colour	Metallic
Form factor	QSFP28
Plug and Play	Yes
Hot-swap	Yes
Input voltage	3.3 V
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Width	124 mm
Depth	18.4 mm
Height	11.7 mm
Quantity per pack	1 pc(s)
User guide	Yes
Country of origin	China
