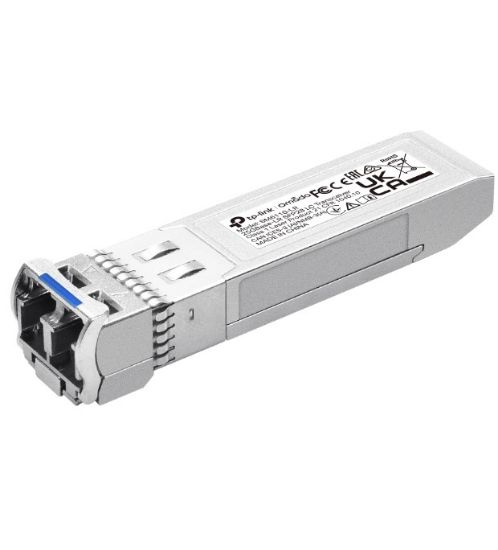

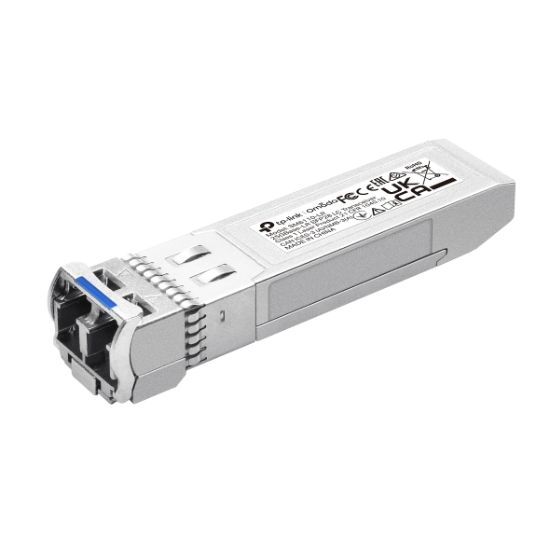

Picture of TP-Link SM6110-LR Omada 25GBase-LR SFP28 LC Transceiver, Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X

TP-Link SM6110-LR Omada 25GBase-LR SFP28 LC Transceiver, Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X

Manufacturer: TP-LINK

Availability: 10 in stock

Old price: $111.44

Price: $122.94

Qty:

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Products specifications

Attribute name	Attribute value
SFP transceiver type	Fiber optic
Maximum data transfer rate	25780 Mbit/s
Interface type	SFP+
Fiber cable diameters supported (core/cladding)	9/125 µm
Maximum transfer distance	10000 m
Wavelength	1310 nm
Product colour	Grey
Hot-Plug support	Yes
Hot-swap	Yes
Input voltage	3.3 V
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 90%
Width	57 mm
Depth	14 mm
Height	12 mm
Quantity per pack	1 pc(s)
