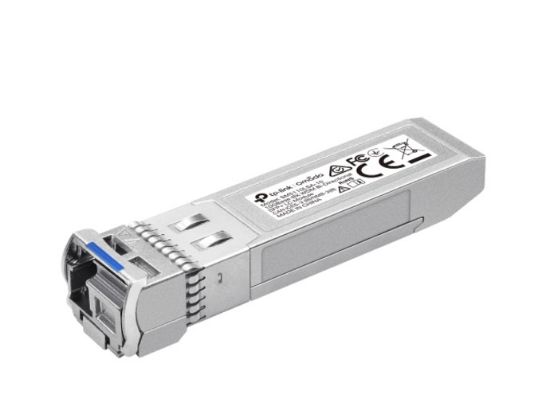

Picture of TP-Link SM5110LSA-10 Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

TP-Link SM5110LSA-10 Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

Manufacturer: TP-LINK
Availability: 43 in stock
TP-Link SM5110LSA-10 Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
$75.27
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
Products specifications
Attribute nameAttribute value
SFP transceiver typeFiber optic
Maximum data transfer rate10312 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC (UPC)
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance10000 m
Tx wavelength (max)1330 nm
Rx wavelength (max)1270 nm
Networking standardsIEEE 802.3ae
Digital Diagnostics Monitoring (DDM)Yes
Product colourSilver
Hot-swapYes
Input voltage3.3 V
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Minimum operating temperature0 °C
Maximum operating temperature70 °C
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Width57 mm
Depth14 mm
Height12 mm
Quantity per pack1 pc(s)
ManualYes
