  • TP-Link SM321A 1000Base-BX WDM Bi-Directional SFP Module, LC connector, TX:1550nm/RX:1310nm, single-mode, 10km

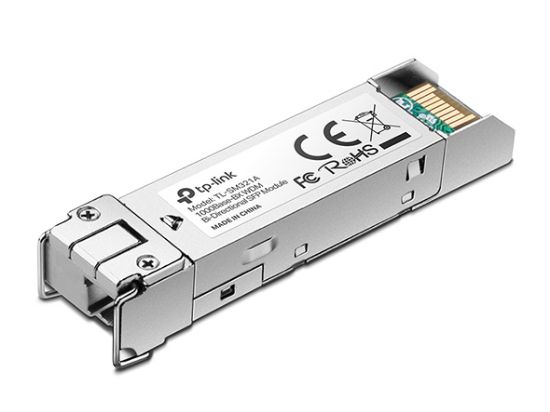

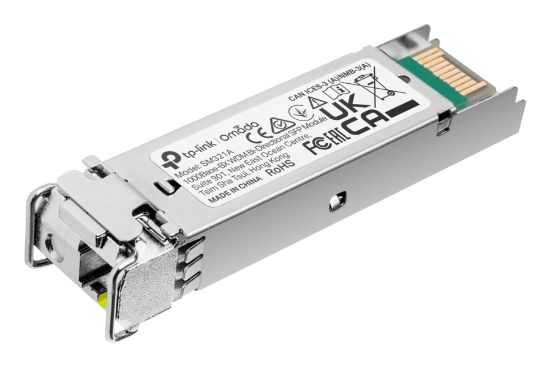

Picture of TP-Link SM321A 1000Base-BX WDM Bi-Directional SFP Module, LC connector, TX:1550nm/RX:1310nm, single-mode, 10km

TP-Link SM321A 1000Base-BX WDM Bi-Directional SFP Module, LC connector, TX:1550nm/RX:1310nm, single-mode, 10km

TP-Link SM321A 1000Base-BX WDM Bi-Directional SFP Module, LC connector, TX:1550nm/RX:1310nm, single-mode, 10km
Manufacturer: TP-LINK
Availability: 4 in stock
$43.35
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
TP-Link´s SM321A(TL-SM321A) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.

Products specifications

Attribute nameAttribute value
SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance20000 m
Tx wavelength (max)1550 nm
Rx wavelength (max)1310 nm
Digital Diagnostics Monitoring (DDM)Yes
Product colourSilver
Hot-swapYes
Input voltage3.3 V
CertificationFCC, CE
Minimum operating temperature0 °C
Maximum operating temperature70 °C
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Width55.4 mm
Depth14.6 mm
Height12.9 mm
Quantity per pack1 pc(s)
User guideYes
Package width38 mm
Package depth207 mm
Package height38 mm
Package weight110 g
