  • TP-Link SM311LS Gigabit SFP module, Single-mode, MiniGBIC, LC interface, Up to 10km distance

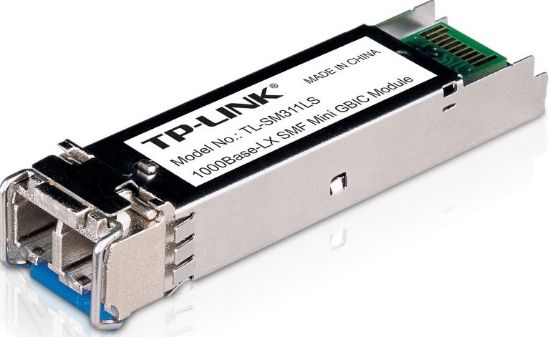

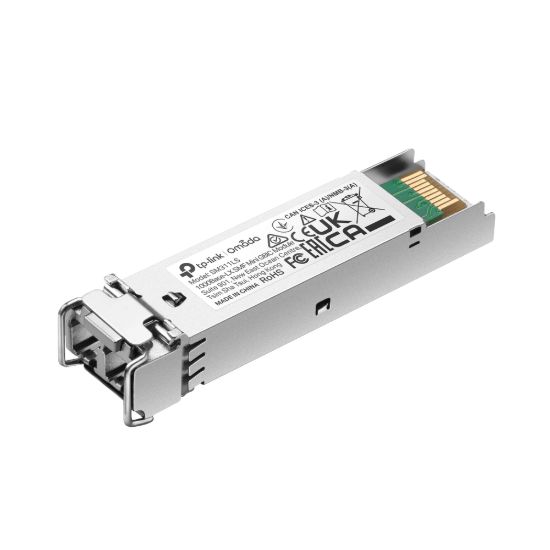

Picture of TP-Link SM311LS Gigabit SFP module, Single-mode, MiniGBIC, LC interface, Up to 10km distance

TP-Link SM311LS Gigabit SFP module, Single-mode, MiniGBIC, LC interface, Up to 10km distance

Manufacturer: TP-LINK
Availability: 9 in stock
TP-Link SM311LS Gigabit SFP module, Single-mode, MiniGBIC, LC interface, Up to 10km distance
$40.35
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Products specifications
Attribute nameAttribute value
SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typemini-GBIC
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
SFP transceiver standardLX
Maximum transfer distance20000 m
Wavelength1310 nm
Networking standardsIEEE 802.3z
Fiber ethernet cabling technology1000BASE
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Yes
Product colourSilver
Hot-Plug supportYes
Hot-swapYes
Brand compatibilityMSA Compliant
Input voltage3.3 V
Compliance certificatesCE, Federal Communications Commission (FCC)
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Width55.4 mm
Depth14.6 mm
Height12.9 mm
Quantity per pack1 pc(s)
ManualYes
Package width38 mm
Package depth207 mm
Package height38 mm
Package weight110 g
