  • TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

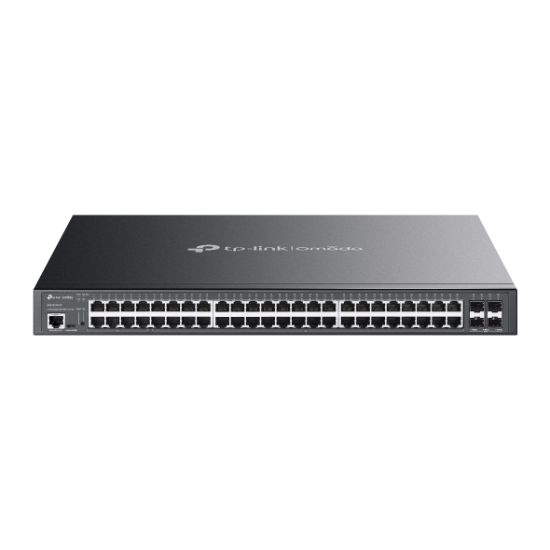

Picture of TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

Manufacturer: TP-LINK
Availability: 2 in stock
TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++
Old price: $2,018.76
$2,038.17
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ • 4× 10 Gbps SFP+ slots • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port) • 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port) • 750 W total PoE budget* • Centralised cloud management via the web or the Omada app† • Standalone management via web, CLI, SNMP, and RMON • Static Routing helps route internal traffic for higher efficiency • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM • ERPS supports rapid protection and recovery in a ring topology • Durable metal casing and rack-mountable design Warranty Period: 5-Year
Products specifications
Attribute nameAttribute value
Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity4
Console portRJ-45/Micro-USB
Power connectorAC-in jack
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G supportYes
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
Switching capacity176 Gbit/s
Forwarding rate130.9 Mpps
MAC address table16000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory12 MB
DHCP featuresDHCP client, DHCP relay, DHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
Static port securityYes
SSH/SSL supportYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
AuthenticationAuto VLAN, Guest VLAN
Multicast supportYes
Rack mountingYes
Form factor1U
Product colourBlack
Reset buttonYes
LED indicatorsYes
Number of fans3 fan(s)
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)635.7 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity40
Power over Ethernet 4PPoE (PoE++) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget750 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation2169.2 BTU/h
Width440 mm
Depth330 mm
Height44 mm
Cables includedAC
Quick start guideYes
CertificationCE, FCC, RoHS
