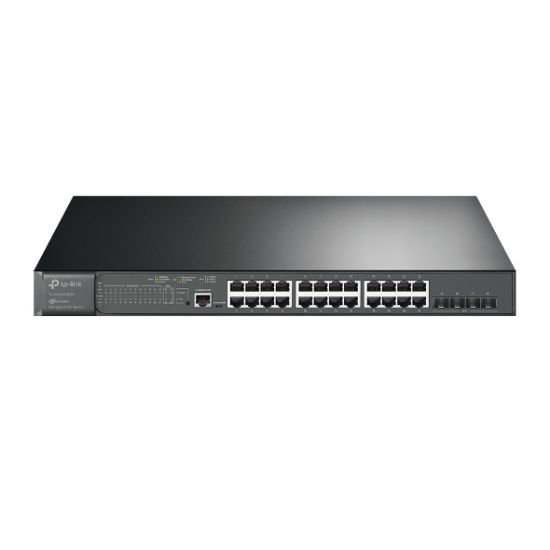

TP-Link SG3428XMP Omada 24-Port PoE+ Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots , Integration with Omada SDN Controller,Static Routing, OAM, DD

TP-Link SG3428XMP Omada 24-Port PoE+ Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots , Integration with Omada SDN Controller,Static Routing, OAM, DD
Manufacturer: TP-LINK
Availability: 4 in stock
Old price: $945.39
$1,069.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Products specifications

Attribute nameAttribute value
Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
System event logYes
MIB supportYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
SFP+ module slots quantity4
Console portRJ-45/Micro-USB
Power connectorAC-in jack
Networking standardsIEEE 802.11d, IEEE 802.1s, IEEE 802.1w
10G supportYes
Port mirroringYes
Policy-based routingYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
Ethernet LAN data rates10,100,1000 Mbit/s
Active link detectionYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4000
Switching capacity128 Gbit/s
Forwarding rate95.23 Mpps
MAC address table16000 entries
Number of static routes48
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory12 MB
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
Multicast supportYes
Management protocolsSNMPv1/v2c/v3, SNTP
Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Number of fans2 fan(s)
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)486.2 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget384 W
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1658.78 BTU/h
Width440 mm
Depth330 mm
Height44 mm
Cables includedLAN (RJ-45)
Quick start guideYes
