  • TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+, 32× Gigabit 802.3af/at PoE+ ports, 16× Gigabit non-PoE RJ45 ports

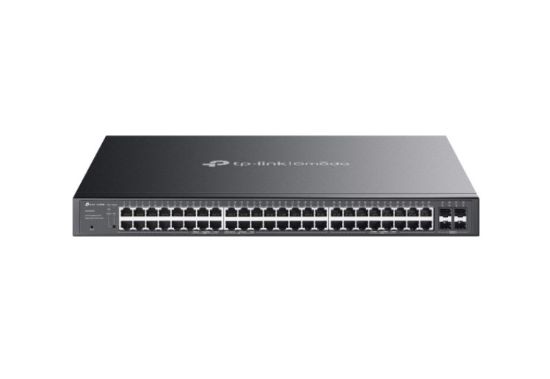

Picture of TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+, 32× Gigabit 802.3af/at PoE+ ports, 16× Gigabit non-PoE RJ45 ports

TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+, 32× Gigabit 802.3af/at PoE+ ports, 16× Gigabit non-PoE RJ45 ports

Manufacturer: TP-LINK
Availability: 4 in stock
TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+, 32× Gigabit 802.3af/at PoE+ ports, 16× Gigabit non-PoE RJ45 ports
$916.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Power over Ethernet, Flexible Network Deployment

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Products specifications
Attribute nameAttribute value
Switch typeManaged
Switch layerL2/L2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes
MIB supportY
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Power connectorAC-in jack
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x
10G supportNo
Port mirroringYes
IP routingYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Active link detectionYes
VLAN supportYes
Switching capacity104 Gbit/s
Forwarding rate77.37 Mpps
MAC address table16000 entries
Static routeYes
Jumbo frames supportYes
Jumbo frames9000
DHCP featuresDHCP relay, DHCP server
IGMP snoopingYes
Security algorithmsSNMP, SNMPv2, SNMPv3
MAC address filteringYes
SSH/SSL supportYes
Loop protectionYes
Authentication typeRADIUS
Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)304.5 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity32
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget230 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1035.4 BTU/h
Width440 mm
Depth330 mm
Height44 mm
