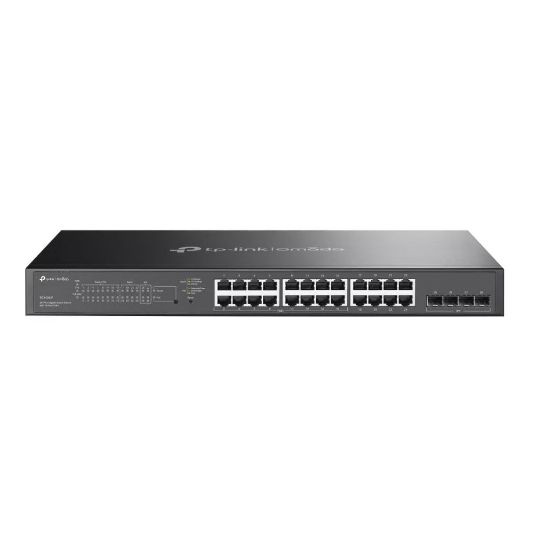

Picture of TP-Link SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port PoE+, 16× Gigabit 802.3af/at PoE+ ports, 8× Gigabit non-PoE RJ45 ports and 4× Gigabit

TP-Link SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port PoE+, 16× Gigabit 802.3af/at PoE+ ports, 8× Gigabit non-PoE RJ45 ports and 4× Gigabit

Manufacturer: TP-LINK

Availability: 10 in stock

$450.70

Qty:

- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Products specifications

Attribute name	Attribute value
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
Switching capacity	56 Gbit/s
Forwarding rate	41.66 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
DHCP features	DHCP relay, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
Password protection	Yes
Multicast support	Yes
Rack mounting	Yes
Product colour	Grey
LED indicators	Yes
Fanless	Yes
Power source	AC/PoE
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	184.7 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	150 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	628 BTU/h
Width	440 mm
Depth	220 mm
Height	44 mm
