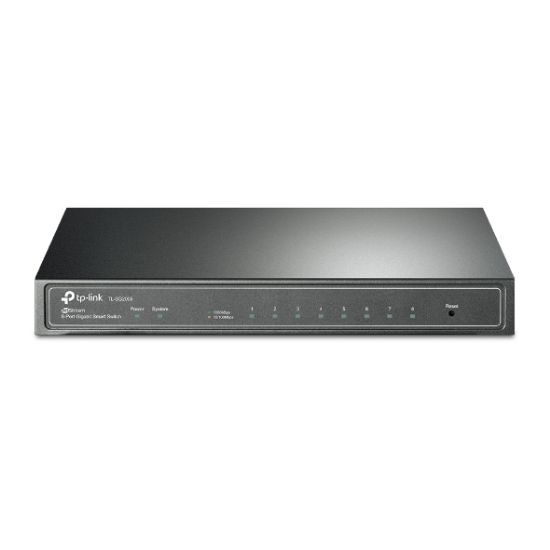

Picture of TP-Link SG2008 JetStream 8-Port Gigabit Smart Switch PORT: 8× Gigabit RJ45 Ports: Desktop Steel Case, Static Routing,Omada

TP-Link SG2008 JetStream 8-Port Gigabit Smart Switch PORT: 8× Gigabit RJ45 Ports: Desktop Steel Case, Static Routing,Omada

Manufacturer: TP-LINK

Availability: 2 in stock

Old price: $144.79

Price: $144.78

Qty:

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Products specifications

Attribute name	Attribute value
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	8000 entries
Static route	Yes
Number of static routes	32
Number of IP interfaces	16
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	SSH, SSH-2, SSL/TLS
SSH/SSL support	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Multicast support	Yes
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
Product colour	Black
LED indicators	Yes
Wall mountable	Yes
Fanless	Yes
Power source	DC
Power supply included	Yes
Input current	1 A
Input voltage	12 V
Power consumption (max)	6.4 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	21.84 BTU/h
Width	209 mm
Depth	126 mm
Height	26 mm
Cables included	AC
User guide	Yes
Certification	CE, FCC, RoHS
