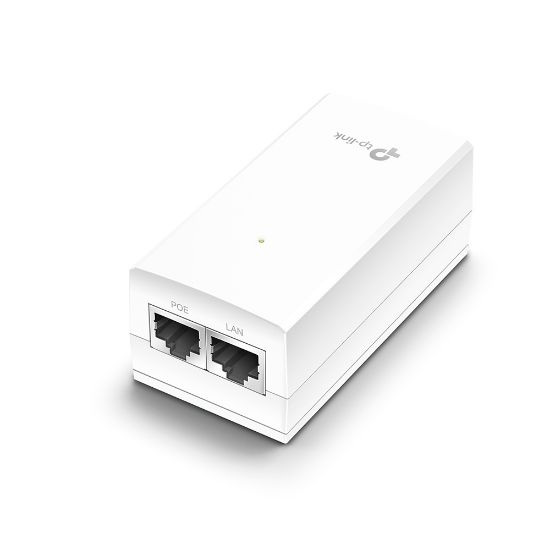

Picture of TP-Link POE4818G Omada 48V Passive PoE Injector Adapter, 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port

TP-Link POE4818G Omada 48V Passive PoE Injector Adapter, 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port

Manufacturer: TP-LINK

Availability: 19 in stock

$32.85

Qty:

Passive PoE Adapter
Powers TP-Link products that support 48V passive PoE

Power Your Devices
Use the passive PoE adapter POE4818G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
POE4818G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
POE4818G is recommended to offer power supply to TP-Link’s passive PoE products which as follows.

Products specifications

Attribute name	Attribute value
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Product colour	White
Wall mountable	Yes
Easy to install	Yes
Plug and Play	Yes
Maximum operating distance	100 m
LED indicators	Power, Yes
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
Power over Ethernet (PoE) voltage	48 V
Output power	18 W
AC adapter input voltage	100-240 V
AC adapter frequency	50-60 Hz
Total Power over Ethernet (PoE) budget	18 W
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Width	85.8 mm
Depth	43.9 mm
Height	35 mm
Number of products included	1 pc(s)
Power cord included	Yes
Package type	Box
Output power	18 W
AC adapter input voltage	100-240 V
