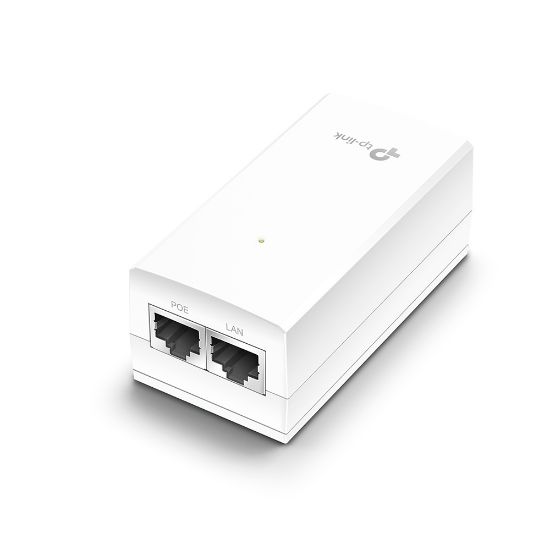

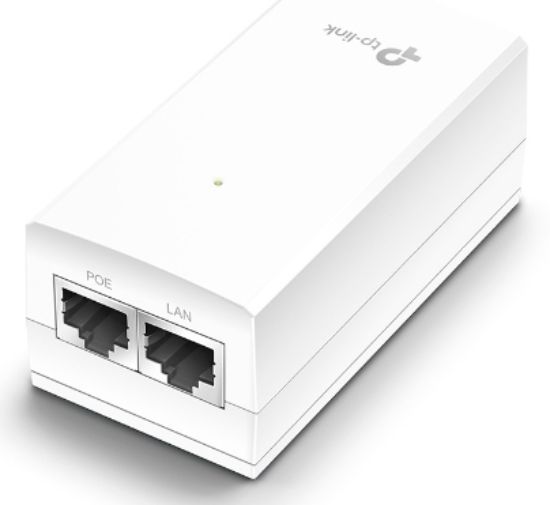

Picture of TP-Link POE2412G Omada 24V Passive PoE Injector Adapter, 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port, Data and Power Carried over The Same Cable, 24V

TP-Link POE2412G Omada 24V Passive PoE Injector Adapter, 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port, Data and Power Carried over The Same Cable, 24V

Manufacturer: TP-LINK

Availability: 21 in stock

$29.85

Qty:

Passive PoE Adapter
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G

Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.

Products specifications

Attribute name	Attribute value
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Yes
Auto MDI/MDI-X	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Product colour	White
Wall mountable	Yes
Plug and Play	Yes
Maximum operating distance	100 m
LED indicators	Power
Auto-negotiation	Yes
Ethernet LAN (RJ-45) ports	2
Power over Ethernet (PoE) voltage	24 V
Output power	12 W
Compliance certificates	RoHS
Certification	FCC, CE, RoHS
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Width	85.8 mm
Depth	43.9 mm
Height	35 mm
Dimensions (WxDxH)	43.9 x 85.8 x 35 mm
Number of products included	1 pc(s)
Wall mounting kit	Yes
Power cord included	Yes
Package width	60 mm
Package depth	180 mm
Package height	60 mm
Package weight	290 g
Harmonized System (HS) code	85044095
Output power	12 W
