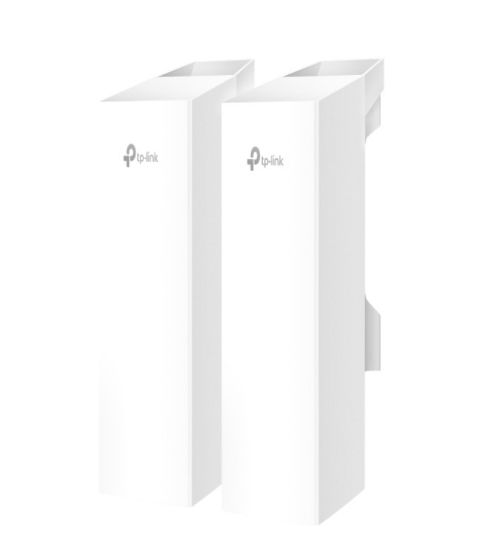

Picture of TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge, Up To 5km, 3x Gigabit Ethernet, Auto-pairing, IP65 (EAP215-Bridge KIT)

TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge, Up To 5km, 3x Gigabit Ethernet, Auto-pairing, IP65 (EAP215-Bridge KIT)

Manufacturer: TP-LINK

Availability: 15 in stock

Old price: $278.19

Price: $366.12

Qty:

EAP215-Bridge KIT
Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 3.1 mi (5 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing
- 3× Gigabit Ethernet Ports
- 802.3af PoE & DC Power Supply & Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring & Management

Products specifications

Attribute name	Attribute value
2.4 GHz	No
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
MIMO	Yes
MIMO type	Multi User MIMO
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	<23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP)
Transmitting power (FCC)	<22dBm (5 GHz band1/4)
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH
MAC address filtering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes
Web-based management	Yes
Syslog	Yes
Ethernet LAN (RJ-45) ports	3
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
DC voltage range	12 V
Placement	Pole
Product colour	White
Reset button	Yes
LED indicators	Yes, Power
Antenna type	Internal, 2x2
Antenna direction type	Directional
Antenna features	Integrated antenna
Antenna gain level (max)	11 dBi, 14 dBi
Polarization	Dual polarization
Certification	CE, FCC, RoHS
Width	224 mm
Depth	79 mm
Height	60 mm
Weight	330.9 g
Quick start guide	Yes
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Maximum transfer distance	5000 m
Antenna design	Internal
Wi-Fi	Yes
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Frequency band	5 GHz
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Connectivity technology	Wired & Wireless
DC-in jack	Yes
Product type	Network bridge
Mounting type	Pole
International Protection (IP) code	IP65
Power source type	DC, PoE
DC input voltage	12 V
Power over Ethernet (PoE) voltage	24 V
PoE+ Injector(s)	Yes
Cables included	AC
