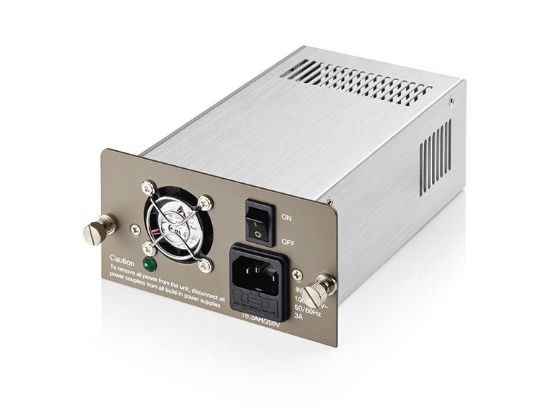

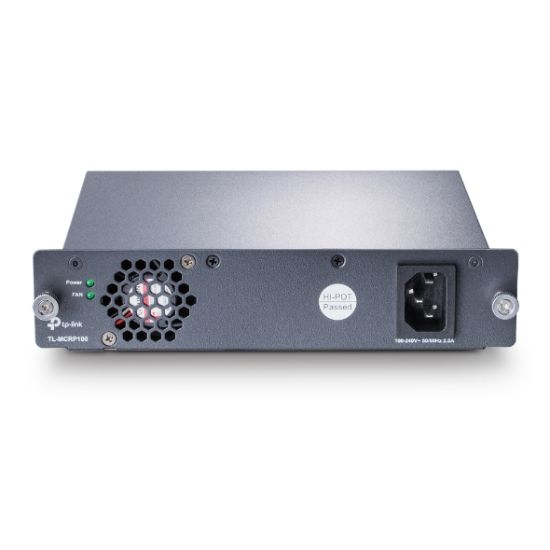

Picture of TP-Link MCRP100 100-240V Redundant Power Supply Module for TL-MC Series Media Converter, Up to 102 watts output power

TP-Link MCRP100 100-240V Redundant Power Supply Module for TL-MC Series Media Converter, Up to 102 watts output power

Manufacturer: TP-LINK

Availability: 2 in stock

Old price: $156.29

Price: $156.28

Qty:

The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 12VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.

Products specifications

Attribute name	Attribute value
Total power	75 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.8 A
Max output current (+12V)	6.25 A
Power protection features	Over power, Overload, Short circuit
Product colour	Black
Illumination	Yes
LED indicators	Power
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-35 - 85 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	10 - 95%
Width	210 mm
Depth	130 mm
Height	70 mm
Package width	250 mm
Package depth	400 mm
Package height	80 mm
Package weight	1.5 kg
Illumination colour	Green
Power management	Yes
Total power	75 W
Power protection features	Over power, Overload, Short circuit
Illumination	Yes
