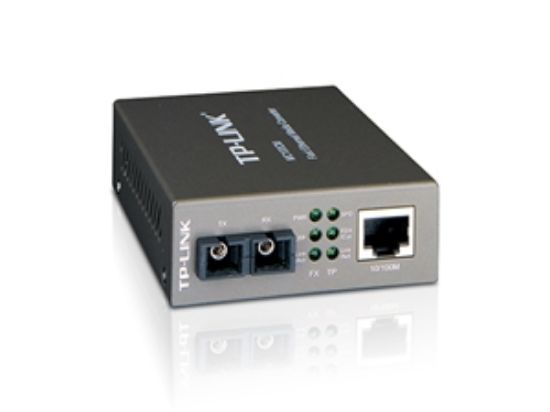

TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter - IEEE 802.3u, SC-Type, 1310nm 2km Multi-mode

TP-Link MC100CM Media Converter 10/100Mbps RJ45 to 100M multi-mode SC fiber up to 2km chassis mountable Complies with 802.3u 10/100Base-TX, 100Base-FX standards Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port Extends fiber distance up to 2km What This Product Does The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers. MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x Basic Function Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 2km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Ports 1 100M SC/UPC port 1 100M RJ45 port (Auto MDI/MDIX) Wave Length 1310nm Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Network Media 100BASE-FX Multi-mode Fiber LED Indicators PWR, FDX/Col, Link/Act, SPD Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) Power Supply External power supply
