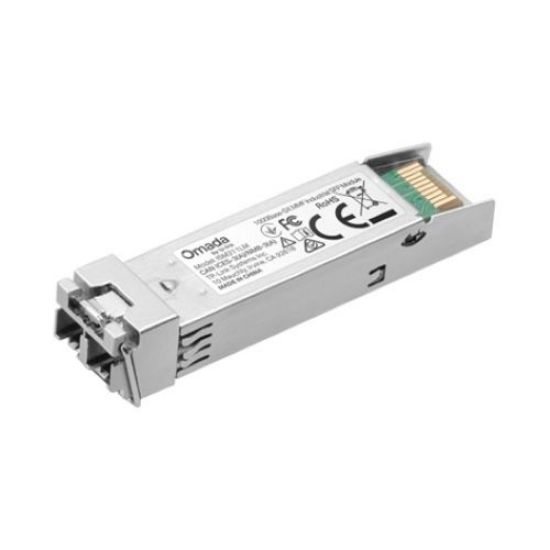

Picture of TP-Link ISM311LS & ISM311LM 1000Base-LX & 1000Base-SX SMF Industrial SFP Module

Sorry - this product is no longer available

TP-Link ISM311LS & ISM311LM 1000Base-LX & 1000Base-SX SMF Industrial SFP Module

Manufacturer: TP-LINK

Availability: Out of stock

$49.35

Qty:

ISM311LM is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LM can extend the distance to 550m. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Products specifications

Attribute name	Attribute value
SFP transceiver type	Fiber optic
Maximum data transfer rate	1.25 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC (UPC)
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Maximum transfer distance	550 m
Wavelength	850 nm
Ethernet interface type	1.25 Gigabit Ethernet
Networking standards	IEEE 802.3z
Product colour	Grey
Hot-swap	Yes
Input voltage	3.3 V
Certification	FCC, CE
Minimum operating temperature	-40 °C
Maximum operating temperature	85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Storage relative humidity (H-H)	5 - 85%
Width	56.4 mm
Depth	13.4 mm
Height	11 mm
Quantity per pack	1 pc(s)
