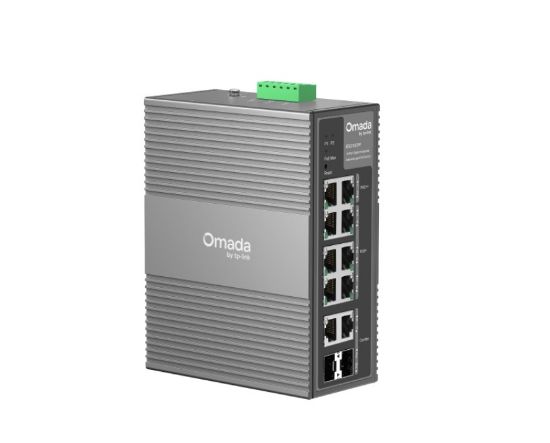

Picture of TP-Link IES210GPP Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

TP-Link IES210GPP Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

Manufacturer: TP-LINK

Availability: 37 in stock

Old price: $630.37

Price: $523.69

Qty:

Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch

Industrial-Grade Protection Built for Harsh Environments

- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting

Products specifications

Attribute name	Attribute value
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
VLAN support	Yes
Number of VLANs	4000
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15000
Packet buffer memory	4000 MB
DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes
Multicast support	Yes
Rack mounting	Yes
Form factor	DIN rail
Product colour	Grey
LED indicators	Yes
Power source	DC
DC input voltage	12 - 57 V
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	6
Power over Ethernet 4PPoE (PoE++) ports quantity	2
Total Power over Ethernet (PoE) budget	240 W
Width	155 mm
Depth	120 mm
Height	60 mm
