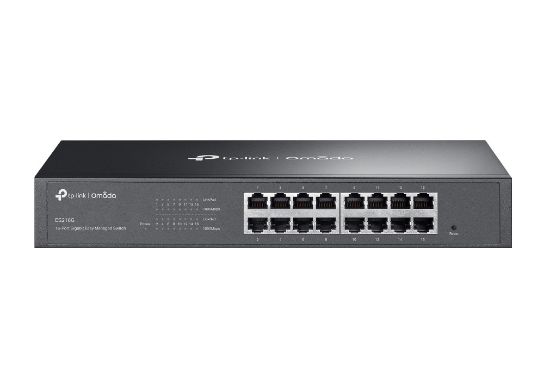

Picture of TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping,
Picture of TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping,
Picture of TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping,
Picture of TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping,
Picture of TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping,

TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping,

TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping,
Manufacturer: TP-LINK
Availability: 8 in stock
$145.94
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Products specifications

Attribute nameAttribute value
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
Unified static configurationYes
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity16
Power connectorAC-in jack
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
10G supportNo
Zero Touch Provisioning (ZTP)Yes
Port mirroringYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Fast leaveYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs32
Switching capacity32 Gbit/s
Forwarding rate23.8 Mpps
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory4 MB
DHCP featuresDHCP client
IGMP snoopingYes
Loop protectionYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Rack mountingYes
Product colourBlack
LED indicatorsYes
Flash memory64 MB
Firmware upgradeableYes
FanlessYes
Mean time between failures (MTBF)2131140 h
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)8.4 W
Surge protectionYes
Surge protection voltage6 kV
Power over Ethernet (PoE)No
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation28.52 BTU/h
Width294 mm
Depth140 mm
Height44 mm
Cables includedAC
User guideYes
Rack mount kitYes
Package typeBox
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
