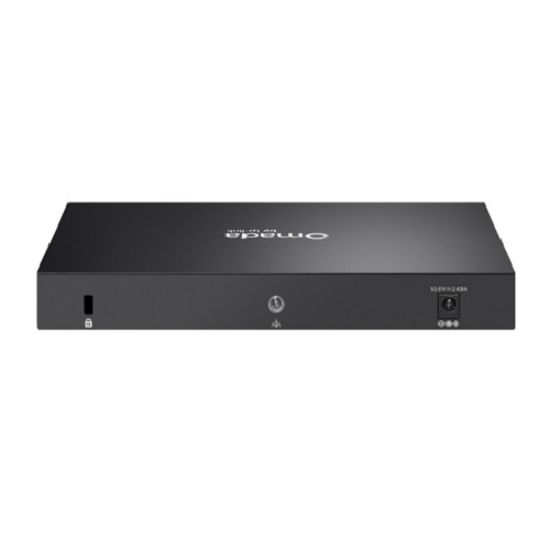

TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch

TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch
Manufacturer: TP-LINK
Availability: 20 in stock
Old price: $339.17
$300.04
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.

Products specifications

Attribute nameAttribute value
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity1
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab
10G supportNo
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN
Switching capacity45 Gbit/s
Forwarding rate33.48 Mpps
MAC address table16000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames10
Packet buffer memory0.64 MB
DHCP featuresDHCP client
IGMP snoopingYes
Form factorDesktop/Wall-Mounting
Product colourBlack
LED indicatorsYes
Flash memory64 MB
Firmware upgradeableYes
Power sourceAC/PoE
Power supply includedYes
AC input voltage100 - 240 V
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity4
Power over Ethernet (PoE) power per port90 W
Total Power over Ethernet (PoE) budget120 W
Operating temperature (T-T)-5 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Width209 mm
Depth126 mm
Height26 mm
CertificationCE, FCC, RoHS
