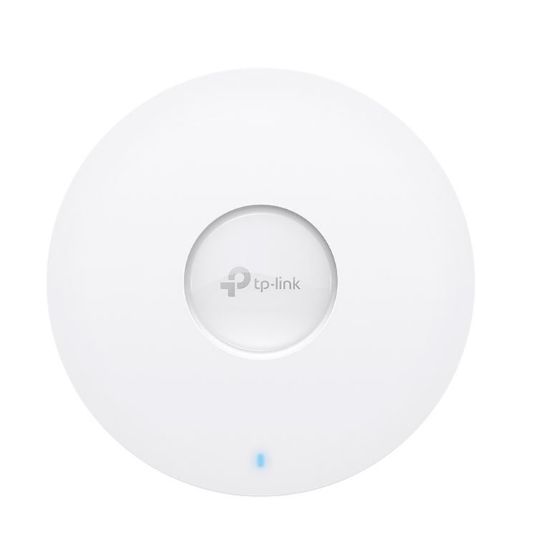

Picture of TP-Link EAP783 Omada BE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point (WIFI7), 1148Mbps @2.4GHz + 8640 Mbps @5GHz+ 11520 Mbps @6GHz

TP-Link EAP783 Omada BE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point (WIFI7), 1148Mbps @2.4GHz + 8640 Mbps @5GHz+ 11520 Mbps @6GHz

Manufacturer: TP-LINK
Availability: 2 in stock
TP-Link EAP783 Omada BE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point (WIFI7), 1148Mbps @2.4GHz + 8640 Mbps @5GHz+ 11520 Mbps @6GHz (LS)
$967.17
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels.

Two 10G PoE++ Ports
Boosts overall throughput and offers flexible deployment with two 10 Gbps PoE++ ports.

Auto Channel Selection and Power Adjustment
Boost WiFi performance and minimize interference for your network.

Intelligent Power Management
Offers more reliable network operation for your business.

Centralized Cloud Management
Manage the whole network locally or from the cloud.

Omada Mesh Technology
More flexible and convenient wireless deployment.△

PoE++ Power
Supports both 12V DC and 802.3bt PoE++ for flexible installations.
Products specifications
Attribute nameAttribute value
2.4 GHzYes
5 GHzYes
6 GHzYes
Maximum data transfer rate19000 Mbit/s
Maximum data transfer rate (2.4 GHz)1376 Mbit/s
Maximum data transfer rate (5 GHz)5760 Mbit/s
Maximum data transfer rate (6 GHz)11520 Mbit/s
Ethernet LAN data rates10000 Mbit/s
Frequency band2.4 - 6 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Number of users760 user(s)
Automatic channel selectionYes
Automatic channel scanningYes
MIMOYes
MIMO typeMulti User MIMO
VLAN supportYes
Rate limitingYes
Flow control supportYes
Band steeringYes
Airtime Fairness (ATF)Yes
Quality of Service (QoS) supportYes
BeamFormingYes
Security algorithmsWPA, WPA2, WPA3
Access Control List (ACL)Yes
Ethernet LAN (RJ-45) ports2
DC-in jackYes
Power over Ethernet (PoE)Yes
DC voltage range12 V
PlacementCeiling, Wall
Product colourWhite
Reset buttonYes
LED indicatorsYes
Antenna typeInternal
Width280 mm
Depth280 mm
Height46.5 mm
Package typeBox
Quantity per pack1 pc(s)
Mounting kitYes
Quick start guideYes
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
