  • TP-Link EAP683 UR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point, 1×2.5G RJ45 Port, 1148Mbps at 2.4 GHz + 4804 Mbps at 5 GHz

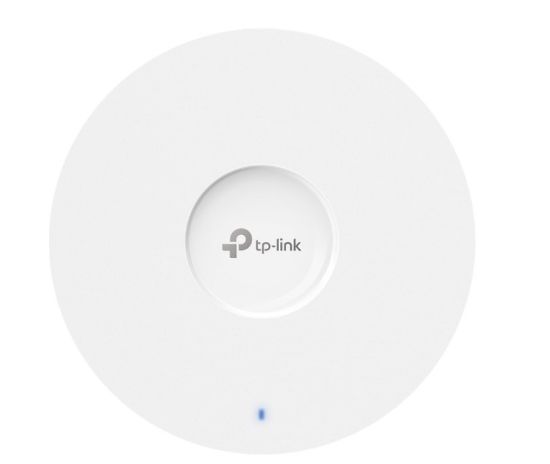

Picture of TP-Link EAP683 UR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point, 1×2.5G RJ45 Port, 1148Mbps at 2.4 GHz + 4804 Mbps at 5 GHz

TP-Link EAP683 UR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point, 1×2.5G RJ45 Port, 1148Mbps at 2.4 GHz + 4804 Mbps at 5 GHz

Manufacturer: TP-LINK
Availability: 2 in stock
TP-Link EAP683 UR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point, 1×2.5G RJ45 Port, 1148Mbps at 2.4 GHz + 4804 Mbps at 5 GHz
Old price: $292.57
$334.54
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
TP-Link EAP683 UR AX6000 Ceiling Mount Wi-Fi 6 Access Point • Up to 5952 Mbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz† • Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power. • Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc.‡ • Integrates with the Omada SDN platform for centralised management. • Advanced Features: Omada Mesh, Seamless Roaming, and more.§ • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included). Warranty Period: 5-Year
Products specifications
Attribute nameAttribute value
2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate6000 Mbit/s
Maximum data transfer rate (2.4 GHz)1148 Mbit/s
Maximum data transfer rate (5 GHz)4804 Mbit/s
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Frequency band2.4 - 6 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Number of users510 user(s)
Automatic channel selectionYes
Automatic channel scanningYes
MIMOYes
MIMO typeMulti User MIMO
Fast roamingYes
VLAN supportYes
Rate limitingYes
Band steeringYes
Airtime Fairness (ATF)Yes
Quality of Service (QoS) supportYes
BeamFormingYes
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, SSH
MAC address filteringYes
Service Set Identifier (SSID) featuresMultiple SSIDs
Access Control List (ACL)Yes
SyslogYes
Firmware upgradeableYes
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Power over Ethernet (PoE)Yes
DC voltage range12 V
PlacementCeiling, Wall
Product colourWhite
Reset buttonYes
LED indicatorsYes
Antenna typeInternal
Antenna direction typeOmni-directional
Antenna gain level (max)5 dBi
Width220 mm
Depth220 mm
Height32.5 mm
Package typeBox
Quantity per pack1 pc(s)
Mounting kitYes
Quick start guideYes
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
