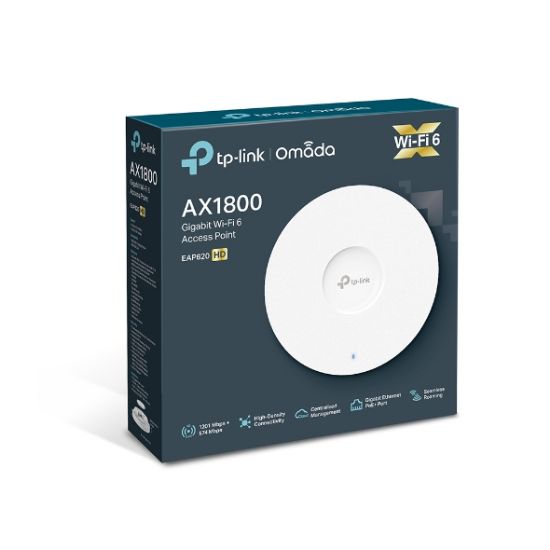

TP-Link EAP620 HD Omada AX1800 Wireless Dual Band Ceiling Mount Access Point, 1201Mbps @ 5GHz , OFDMA, MU-MIMO, QoS, Mountable

Manufacturer: TP-LINK
Availability: 18 in stock
TP-Link EAP620 HD Omada AX1800 Wireless Dual Band Ceiling Mount Access Point, 1201Mbps @ 5GHz , OFDMA, MU-MIMO, QoS, Mountable
$244.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
Products specifications
Attribute nameAttribute value
2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate1201 Mbit/s
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)1201 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Cabling technology10/100/1000Base-T(X)
Number of users1020 user(s)
Automatic channel selectionYes
Automatic channel scanningYes
MIMOYes
MIMO typeMulti User MIMO
Spread spectrum methodOFDMA
Fit AP mode featuresMesh networking
VLAN supportYes
Rate limitingYes
Flow control supportYes
Band steeringYes
Airtime Fairness (ATF)Yes
Quality of Service (QoS) supportYes
BeamFormingYes
Transmitting power (CE)20/23 dBm
Transmitting power (FCC)23 dBm
Security algorithmsSNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
MAC address filteringYes
Remote Authentication Dial-In User Service (RADIUS)Yes
Access Control List (ACL)Yes
Web-based managementYes
SyslogYes
Firmware upgradeableYes
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedActive PoE, Passive PoE
DC voltage range12 V
PlacementCeiling, Wall
Product colourWhite
Reset buttonYes
LED indicatorsYes
Antenna typeInternal
Antenna direction typeOmni-directional
CertificationCE, FCC, RoHS
Width160 mm
Depth160 mm
Height33 mm
Package typeBox
Quantity per pack1 pc(s)
Mounting kitYes
Quick start guideYes
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
