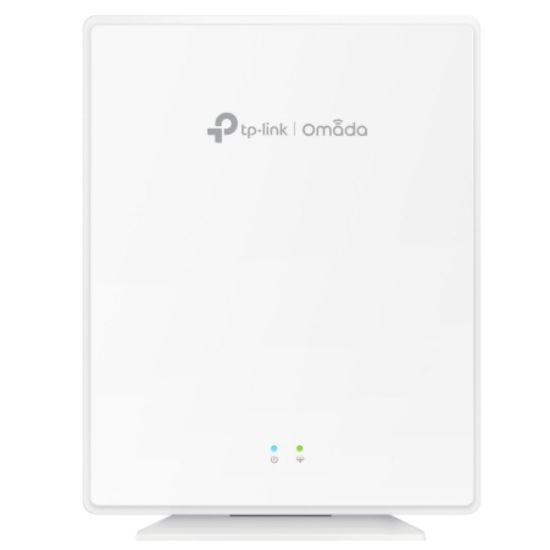

Picture of TP-Link EAP610GP-Desktop Omada AX1800 Wi-Fi 6 Desktop GPON Access Point, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz

TP-Link EAP610GP-Desktop Omada AX1800 Wi-Fi 6 Desktop GPON Access Point, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz

Manufacturer: TP-LINK

Availability: 26 in stock

Old price: $289.77

Price: $256.34

Qty:

AX1800 Wi-Fi 6 Desktop/Wall Mounting GPON Access Point

Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.

One Fiber, Multiple Services
Connect a fiber optic cable to the EAP610GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.

Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.* Omada Mesh and 802.11k/v roaming ensure a consistently smooth and reliable connection.

Flexible Desktop/Wall Installation
Choose a suitable installation method according to your needs.

Products specifications

Attribute name	Attribute value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1201 Mbit/s, 1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	1000 Mbit/s, 1000,10,100 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users	120 user(s)
Channel bandwidth	80 MHz
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Wi-Fi roaming	Yes
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	20 dBm
Transmitting power (FCC)	25 dBm
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs, SSID broadcast on/off
Number of SSID supported	16
Remote Authentication Dial-In User Service (RADIUS)	Yes
Web-based management	Yes
Syslog	Yes
Ethernet LAN (RJ-45) ports	4
Power over Ethernet (PoE)	Yes
DC voltage range	53.5 V
Power consumption (typical)	17.3 W
Placement	Desk, Wall
Product colour	White
Reset button	Yes
LED indicators	Power
Antenna type	Internal
Antenna direction type	Omni-directional
Antennas quantity	2
Antenna gain level (max)	5 dBi
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	CE, FCC, RoHS, IC
Width	175 mm
Depth	140 mm
Height	33 mm
Weight	492 g
Quantity per pack	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Sustainability compliance	Yes
Frequency band	2.4 - 5 GHz
Antenna direction type	Omni-directional
