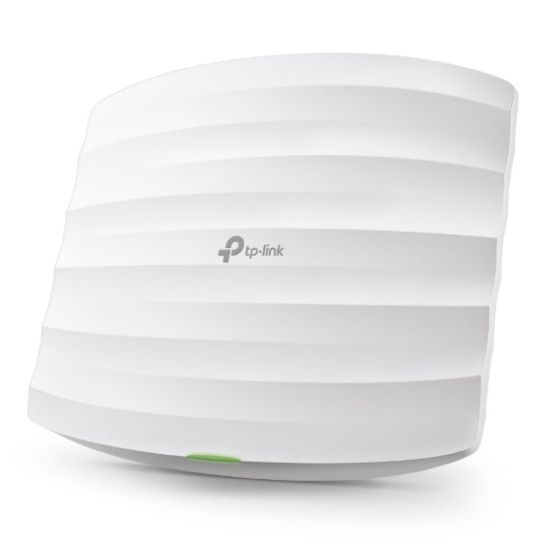

TP-Link EAP225 Omada AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point, Seamless Roaming, POE, Band Steering

Manufacturer: TP-LINK
Availability: 30 in stock
TP-Link EAP225 Omada AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point, Seamless Roaming, POE, Band Steering
Old price: $144.79
$144.78
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management
- Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
Products specifications
Attribute nameAttribute value
2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate1350 Mbit/s
Maximum data transfer rate (2.4 GHz)450 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology10/100/1000Base-T(X)
MIMOYes
MIMO typeMulti User MIMO
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Virtual LAN featuresVLAN mapping
Rate limitingYes
Band steeringYes
Airtime Fairness (ATF)Yes
Quality of Service (QoS) supportYes
BeamFormingYes
Transmitting power (CE)23 dBm
Transmitting power (FCC)24 dBm
Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filteringYes
Service Set Identifier (SSID) featuresMultiple SSIDs
Number of SSID supported16
Access Control List (ACL)Yes
Web-based managementYes
SyslogYes
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPassive PoE
Output voltage12 V
Output current1.5 A
Power consumption (typical)10.15 W
PlacementCeiling, Wall
Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington
On/off switchYes
Reset buttonYes
LED indicatorsPower, WLAN
Antenna typeInternal
Antenna direction typeOmni-directional
Antenna featuresIntegrated antenna
Antennas quantity5
Antenna gain level (max)5 dBi
Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
SIM card slotNo
Width205.5 mm
Depth181.5 mm
Height37.1 mm
Package width228 mm
Package depth340 mm
Package height65 mm
Package weight910 g
Package typeBox
Quantity per pack1 pc(s)
AC adapter includedYes
PoE adapter includedYes
Mounting kitYes
Quick start guideYes
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Sustainability complianceYes
Harmonized System (HS) code85176990
