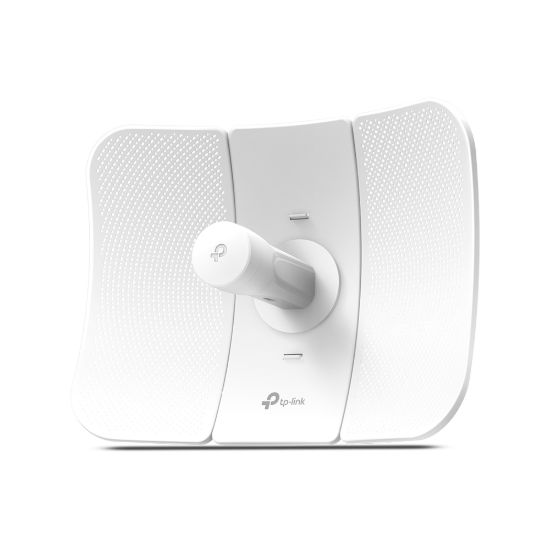

TP-Link CPE710 5GHz AC 867Mbps 23dBi High-gain Directional Outdoor CPE, IP65 Weather Proof, Lightning Protection, Passive POE, Centralised Management

Manufacturer: TP-LINK
Availability: 24 in stock
TP-Link CPE710 5GHz AC 867Mbps 23dBi High-gain Directional Outdoor CPE, IP65 Weather Proof, Lightning Protection, Passive POE, Centralised Management
Old price: $178.14
$189.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

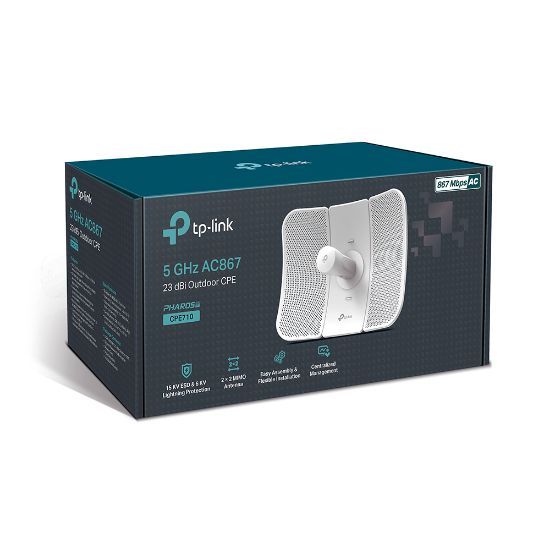

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
Products specifications
Attribute nameAttribute value
Frequency band5.15 - 5.85 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Gain23 dBi
Horizontal beam width
Vertical beam width
Built-in processorYes
Processor frequency750 MHz
Internal memory128 MB
Flash memory16 MB
Antenna gain level (max)23 dBi
Wi-Fi standards802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Antenna typeDirectional antenna
Antenna connector typePoE/LAN
Product colourWhite
Housing materialPlastic
International Protection (IP) codeIP65
LED indicatorsPower
Power source typePoE
Input voltage24 V
CertificationCE, FCC, RoHS, IC
Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Width366 mm
Depth280 mm
Height207 mm
Package typeBox
Cables includedAC
Export Control Classification Number (ECCN)EAR99
Harmonized System (HS) code85176990
