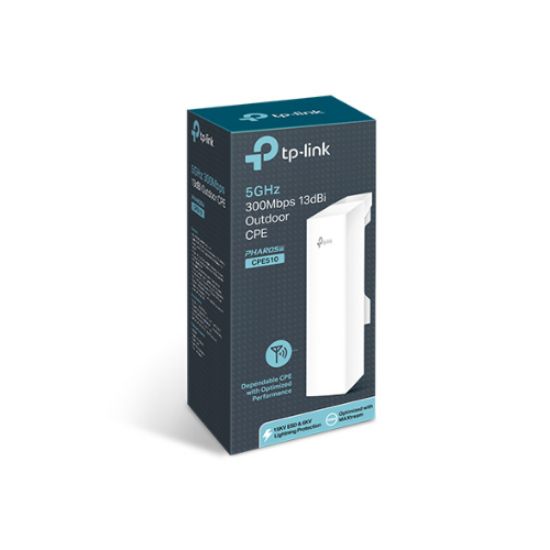

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE Access Point up to 27dBm, 2T2R, 802.11a/n, 16dBi Directional Antenna, Weatherproof

Manufacturer: TP-LINK
Availability: 34 in stock
TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE Access Point up to 27dBm, 2T2R, 802.11a/n, 16dBi Directional Antenna, Weatherproof
Old price: $121.79
$121.78
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference

15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Products specifications
Attribute nameAttribute value
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band5.15 - 5.85 GHz
Bandwidth5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11n
Maximum outdoor range15000 m
Receiver sensitivity802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filteringYes
Management protocolsTDMA
Web-based managementYes
Management platformPharos Control
Ethernet LAN (RJ-45) ports1
WAN connectionEthernet (RJ-45)
Power over Ethernet (PoE)Yes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.8 A
Power consumption (typical)13 W
Product colourWhite
Reset buttonYes
LED indicatorsYes
InternalNo
Antenna featuresIntegrated antenna
Antennas quantity1
Antenna gain level (max)13 dBi
Built-in processorYes
Flash memory8 MB
Internal memory64 MB
Compatible operating systemsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
CertificationFCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Width224 mm
Depth75 mm
Height60 mm
Cables includedAC
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-30 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 95%
Harmonized System (HS) code85176990
