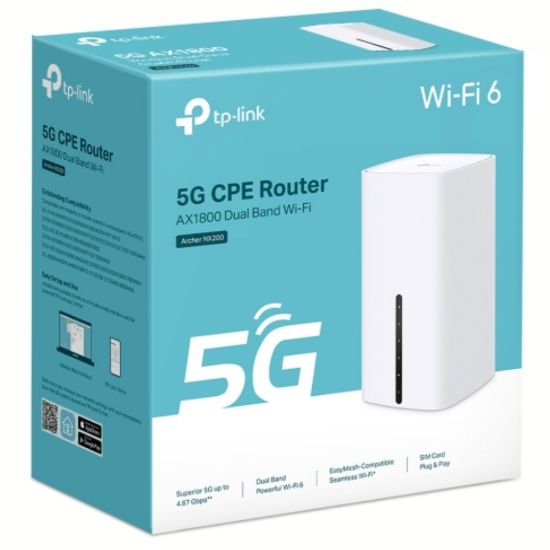

TP-Link Archer NX200 5G AX1800 Wireless Dual-Band Gigabit Router, 1201 Mbps at 5 GHz + 574 Mbps at 2.4 GHz, 5G NR 4.67Gbps/1.25Gbps, LTE support Cat 1

TP-Link Archer NX200 5G AX1800 Wireless Dual-Band Gigabit Router, 1201 Mbps at 5 GHz + 574 Mbps at 2.4 GHz, 5G NR 4.67Gbps/1.25Gbps, LTE support Cat 1
Manufacturer: TP-LINK
Availability: 29 in stock
$628.32
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Enjoy 5G Speed Sharing Everywhere
5G AX1800 Wireless Dual-Band Gigabit Router

Superior 5G –
A Revolutionary Experience

Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX200 is backward compatible with 4G mode.

Share 5G Speed with Reliable Wi-Fi
Thanks to cutting-edge 5G tech, NX200 boosts up to 4.67 Gbps download speeds fulfills your devices’ needs. Armed with WiFi 6 technology, NX200 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card

Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX200 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

Available WAN Connection Backup
The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Setup and Use
Set up the Archer NX200 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

Products specifications

Attribute nameAttribute value
Ethernet WANYes
SIM card slotYes
3G/4G USB modem compatibilityNo
WAN connection typeRJ-45
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN data transfer rate (max)1201 Mbit/s, 1800 Mbit/s
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)574 Mbit/s
WLAN data transfer rate (second band)1201 Mbit/s
Modulation1024-QAM
Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Port triggeringYes
Dynamic DNS (DDNS)Yes
Number of guest networks (2.4 GHz)1
Number of guest networks (5 GHz)1
VPN supportPPTP VPN, IPSec VPN , OpenVPN
Mobile network generation5G
3G standardsDC-HSDPA, HSPA, HSPA+, UMTS
4G standardLTE-TDD & LTE-FDD
5G bands supported700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz
4G bands supported700,800,850,900,1500,1800,2100,2300,2500,2600,3500,3700 MHz
3G bands supported850,900,2100 MHz
SIM card typeNanoSIM
Ethernet LAN (RJ-45) ports3
USB portNo
Wi-Fi Multimedia (WMM)/(WME)Yes
Quality of Service (QoS) supportYes
Reset buttonYes
WPS push buttonYes
MU-MIMO technologyYes
Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
FirewallYes
Firewall securityIPv4 SPI Firewall, IPv6 Firewal
Access Control List (ACL)Yes
DoS attack preventionYes
Parental controlYes
DMZ supportYes
DHCP clientYes
DHCP serverYes
Supported network protocolsIPv4, IPv6
Product colourWhite
On/off switchYes
Product typeTabletop router
Compliance certificatesCE, RoHS
Cables includedLAN (RJ-45)
AC adapter includedYes
Quick installation guideYes
Antenna designInternal
Antennas quantity10
Detachable antenna(s)Yes
Power source typeAC
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Output voltage12 V
Output current2 A
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Browser supportedInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Windows operating systems supportedWindows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supportedYes
Mac operating systems supportedYes
Width99 mm
Depth99 mm
Height190 mm
Ethernet WANYes
WAN connection typeRJ-45
WLAN data transfer rate (first band)574 Mbit/s
WLAN data transfer rate (second band)1201 Mbit/s
Networking standardsIEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
VPN supportPPTP VPN, IPSec VPN , OpenVPN
3G standardsDC-HSDPA, HSPA, HSPA+, UMTS
4G standardLTE-TDD & LTE-FDD
SIM card typeNanoSIM
Firewall securityIPv4 SPI Firewall, IPv6 Firewal
Parental controlYes
DHCP serverYes
Detachable antenna(s)Yes
