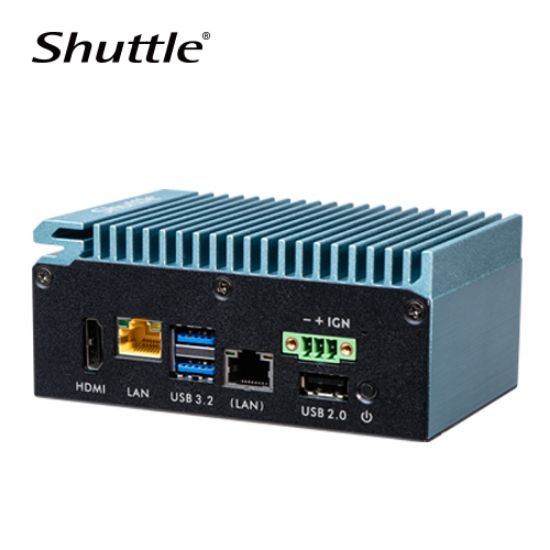

Picture of Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB) Dual Channel DDR4-3200MHz - 32GB M
Picture of Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB) Dual Channel DDR4-3200MHz - 32GB M
Picture of Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB) Dual Channel DDR4-3200MHz - 32GB M
Picture of Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB) Dual Channel DDR4-3200MHz - 32GB M
Picture of Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB) Dual Channel DDR4-3200MHz - 32GB M

Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB) Dual Channel DDR4-3200MHz - 32GB M

Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB) Dual Channel DDR4-3200MHz - 32GB M
Manufacturer: Shuttle
Availability: 6 in stock
Old price: $853.55
$853.54
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The Shuttle Edge PC SPCEL03 is a fanless IPC barebone in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 60°C. Inside there is an Intel Atom "Elkhart Lake" processor with slots for RAM module, M.2 SSD card and WLAN card. The small housing offers an amazing variety of connections, including dual LAN, COM port and Digital I/O. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.

Products specifications

Attribute nameAttribute value
Processor manufacturerIntel
Processor familyIntel Atom®
Processor modelx6413E
Processor cores4
Processor threads4
Processor boost frequency3 GHz
Processor frequency1.5 GHz
Built-in processorYes
L2 cache1.5 MB
Thermal Design Power (TDP)9 W
Memory slots typeSO-DIMM
Number of memory slots1
Maximum internal memory32 GB
Supported memory clock speeds3200 MHz
Supported memory typesDDR4-SDRAM
Memory channelsSingle-channel
Memory voltage1.2 V
ECCNo
Non-ECCYes
Supported storage drive typesSSD
Storage drive sizes supportedM.2
SSD form factorM.2
Storage drive interfaceSerial ATA
On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics
Built-in speaker(s)No
Ethernet LANYes
Wi-FiNo
LAN controllerIntel I226-V
USB 2.0 ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
HDMI ports quantity1
HDMI version2.0b
Ethernet LAN (RJ-45) ports2
Serial ports quantity1
DC-in jackYes
Chassis type0.46L sized PC
Product colourBlack
Cooling typePassive
LED indicatorsPower
Housing materialAluminium
VESA mountingYes
Panel mounting interface100 x 100 mm
Product typeMini PC barebone
Motherboard chipsetIntel SoC
Processor socketBGA 1493
Number of processors supported1
BIOS typeUEFI AMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, VCCI
Harmonized System (HS) code84733080
Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo
Sustainability certificatesENERGY STAR
Power supply typeExternal AC adapter
AC adapter output voltage12 - 24 V
Operating temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Width120 mm
Depth75 mm
Height51 mm
Weight720 g
Package weight1.2 kg
AC adapter includedNo
Memory voltage1.2 V
SSD form factorM.2
Motherboard chipsetIntel SoC
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Power supply typeExternal AC adapter
AC adapter output voltage12 - 24 V
