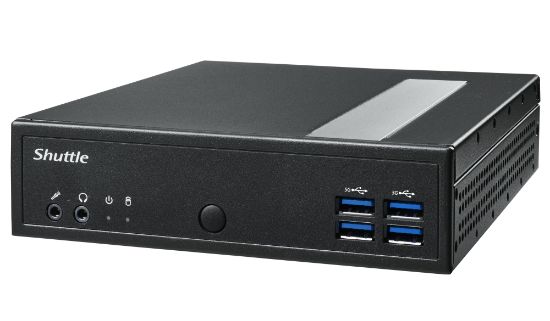

Shuttle DL40N XPC fanless Mini PC 1.3L Barebone - Intel® Twin Lake processorsN150 (4 Cores), DDR5, 8x USB, 2x 2.65W Adapter

Manufacturer: Shuttle
Availability: 2 in stock
Shuttle DL40N XPC fanless Mini PC 1.3L Barebone - Intel® Twin Lake processorsN150 (4 Cores), DDR5, 8x USB, 2x 2.65W Adapter
$587.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
Silence meets performance. The Shuttle XPC slim Barebone DL40N is the sophisticated successor to the proven DL30N, engineered for environments where reliability and silence are non-negotiable. Powered by the energy-efficient Intel "Twin Lake-N" N150 processor, this fanless 1.35-litre PC is the ideal foundation for slimline workstations, robust edge computing, or high-availability client/server setups.

Connectivity is at the heart of the DL40N. Featuring dual Intel 2.5G LAN ports for high-speed networking and an optional 4G upgrade, it ensures seamless integration even in mobile or remote applications. The integrated Intel UHD Graphics supports hardware acceleration for 4K video playback across three independent displays (HDMI, DisplayPort, VGA), making it a versatile choice for digital signage and multi-monitor office environments.

Designed for 24/7 continuous operation and encased in a durable metal chassis, the DL40N remains noiseless when paired with an SSD. Whether it’s for industrial control, point-of-sale, or silent office use – the DL40N delivers professional-grade performance in a compact, maintenance-free form factor.
Products specifications
Attribute nameAttribute value
Processor manufacturerIntel
Processor modelN150
Processor cores4
Processor threads4
Processor boost frequency3.6 GHz
Built-in processorYes
Processor cache6 MB
Thermal Design Power (TDP)6 W
ECC supported by processorNo
Internal memory installedNo
Memory slots typeSO-DIMM
Number of memory slots1
Maximum internal memory16 GB
Supported memory clock speeds4800 MHz
Supported memory typesDDR5-SDRAM
Memory channelsSingle-channel
Memory voltage1.1 V
ECCNo
Non-ECCYes
Storage drives installedNo
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
Storage drive interfacePCI Express, Serial ATA III
NVMeYes
Number of storage drives supported2
Card reader integratedNo
On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® Graphics
Discrete graphics card modelNot available
Maximum resolution4096 x 2160 pixels
Number of displays supported3
Built-in speaker(s)No
Ethernet LANYes
Wi-FiNo
LAN controllerIntel I226-LM
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
DisplayPort version1.4a
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity2
DC-in jackYes
Chassis type1.35L sized PC
Product colourBlack
Cooling typePassive
On/off switchYes
LED indicatorsHDD, Power
Housing materialSteel
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface100 x 75 mm
Product typeMini PC barebone
Number of processors supported1
BIOS typeUEFI AMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio chipRealtek ALC888S
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
Harmonized System (HS) code84733080
Windows operating systems supportedWindows 10, Windows 11 x64
Linux operating systems supportedYes
Operating system installedNo
Sustainability complianceYes
Sustainability certificatesENERGY STAR, ErP
Power supply typeExternal AC adapter
Power supply65 W
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50/60 Hz
AC adapter output voltage19 V
AC adapter output current3.42 A
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Width165 mm
Depth190 mm
Height43 mm
Weight800 g
Package weight2.1 kg
Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
